dali controller

  • Work with dimming, RGB, RGBW LED fixtures.

  • Support sync control and zone control.

  • DIY modes.

  • Support customized scenes and programming.

  • Combination of touch control and number keys allows more convenient use.

  • Wireless synchronization and zone control.

  • Remote control charging through USB cable.

  • Work with T3-5A, T3-CV, T4-CV and T4-CC wireless receivers.

Wireless Sync Controller

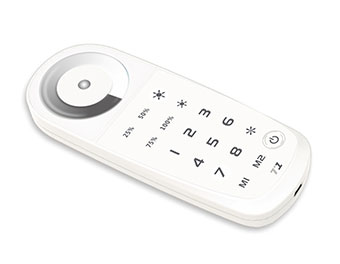

  • 2.4G LED touch controller T1
    nput voltage DC5V built-in Lithium battery
    Working current ≤30mA
    Working frequency 2.4GHZ
    transmitting distance 30m
    Remote option Sync or zone control
    Battery capacity 1000mAh
    Standby time ≤6 months
  • 2.4G LED touch controller T3M
    Input voltage DC5V (Built-in Lithium battery)
    Working current ≤30mA
    Working frequency 2.4GHZ
    transmitting distance 30m
    Remote option Sync or zone control
    Change mode 18 Fantastic modes
    Battery capacity 1000mAh

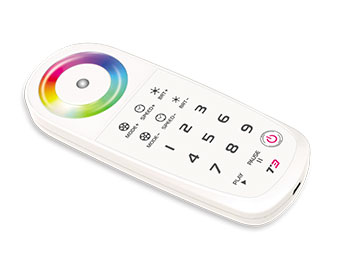

  • 2.4G LED touch controller T3
    Input voltage DC5V(Built-in Lithium battery)
    Working current ≤30mA
    Working frequency 2.4GHZ
    transmitting distance 30m
    Remote option sync control unlimited receivers
    Change mode 32 Fantastic modes
    Battery capacity 1000mAh
    Standby time ≤6 months

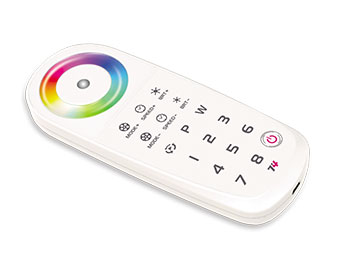

  • 2.4G LED Wireless sync controller T4
    Input voltage DC5V(Built-in Lithium battery)
    Working current ≤30mA
    Working frequency 2.4GHZ
    transmitting distance 30m
    Remote option sync or zone or programming control
    Gray scale level 4096×4096×4096
    Battery capacity 1000mAh

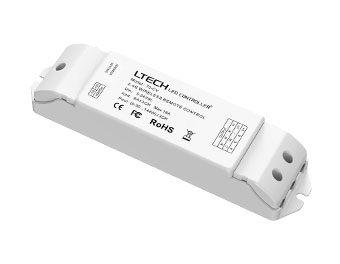

  • Receiving controller T3-CV
    Input voltage DC5V-DC24V
    Max current load 6A×3CH Max 18A
    Max output power 90W/216W/432W(5V/12V/24V)
    Compatible remote control T1/T2/T2M/T3/T3M/T3X
    remote control
    Working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package size L178×W48×H33mm
    Weight (G.W.) 150g

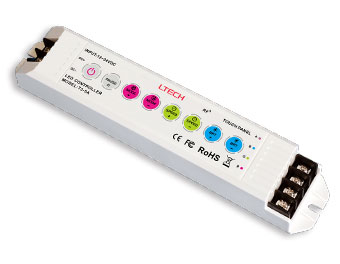

  • CV Receiving controller T3-5A
    nput voltage DC12V-DC24V
    Max current load 5A×3CH   Max 15A
    Max output power 180W/360W(12V/24V)
    Control button 8 touch button
    Compatible remote control workable with T3 T3M T3X remote control
    Working temperature -30℃~55℃
    Dimension L211×W40×H30mm

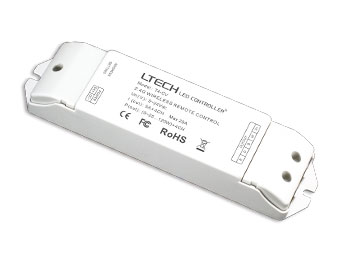

  • CV Receiving controller T4-CV
    Input voltage DC5V-DC24V
    Max current load 5A×4CH Max 20A
    Max output power 100W/240W/480W(5V/12V/24V)
    Compatible remote control workable with T4 remote control
    Working temperature -30℃~55℃
    Dimension L175×W44×H30mm
    Package size 178×W48×H33mm
    Weight (G.W.) 150g
