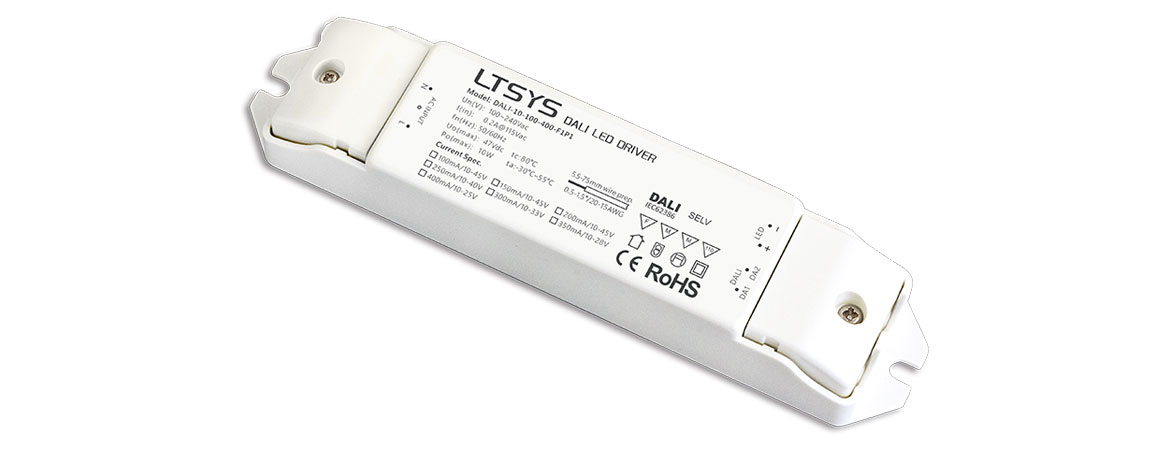

10W 100-400mA CC DALI Driver

  • Description
  • Video
  • Download
Model: DALI-10-100-400-F1P1
Dimming interface:  DALI
Dimming range: 0-100%,  LED Startup Current<0.1%
Input voltage:  100-240Vac
Efficiency: >79%
Output voltage: 10-45Vdc
Current Accuracy: ±3%
working temperature: -30℃~55℃
Dimension: 135x30x20mm(LxWxH)
Package Size: 140x24x23mm(LxWxH)
Weight (G.W): 90g
Sec. output:
Pout(Max.) Vout(DC) Constant(DC)
1-4.5W 10-45V 100mA
1.5-6.75W 10-45V 150mA
2-9W 10-45V 200mA
2.5-10W 10-40V 250mA
3-9.9W 10-33V 300mA
3.5-9.8W 10-28V 350mA
4-10W 10-25V 400mA

*Make a highlight of the current wanted when you place order as the product has fixed output current.
