Artnet-DMX converter Artnet-DMX-8

  • Description
  • Video
  • Download
Brief introduction

Artnet-DMX converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into DMX512 date, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it supports RJ45 network interface and standard DMX512 output interface.

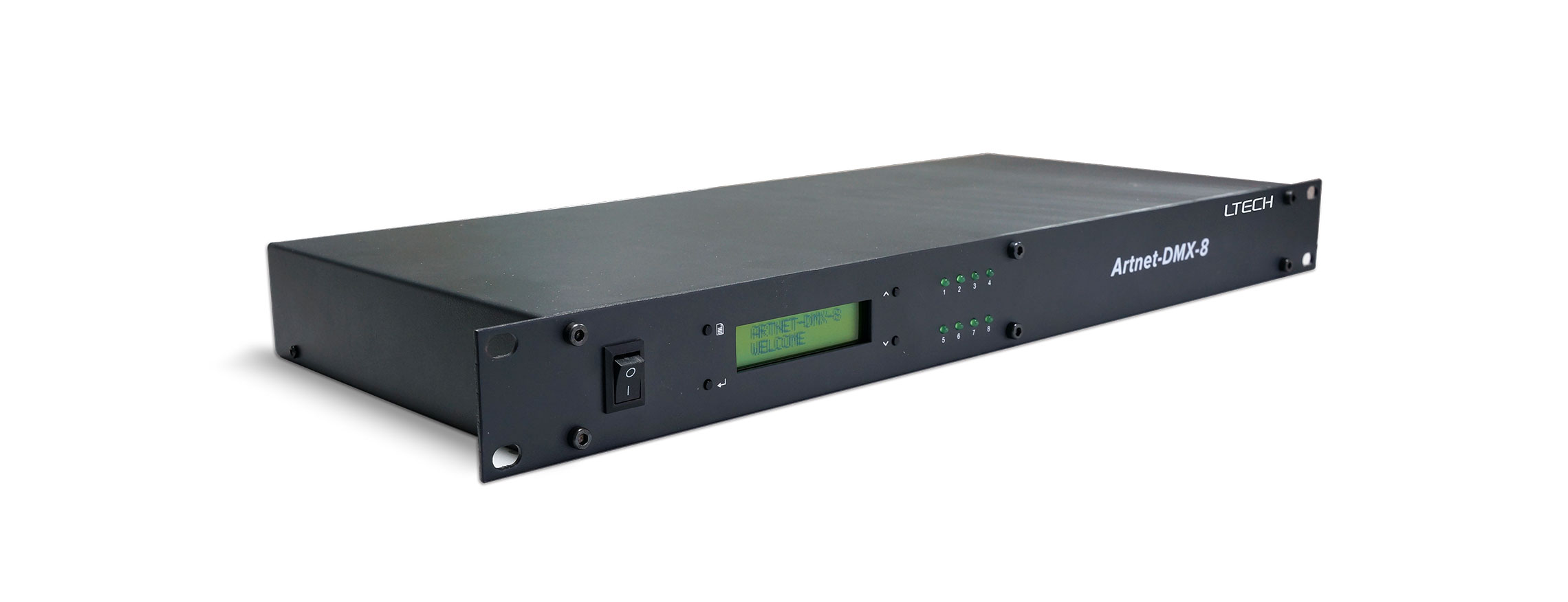

Artnet-DMX-8 use standard 1U(19" ) chassis architecture, convenient installation in professional cabinet, easily operation setting with LCD display.

Artnet-DMX-8 provides 8 standard DMX512 data output port, total output 8×512 data.

It is compatible with all the effects lighting control software which support Art-net protocol, widely used in the LED dot matrix and the stage lighting control network in needing lots of DMX-512 data, especially for TV station recorded scene, stage performances, entertainment and so on.

Performance Features
  • ● Based on Artnet protocol network data communication, accept network DMX data.
  • ● Can set two different IP address in each controller.
  • ● Set different network segments to avoid multiple sets Artnet data interference.
  • ● Manage Artnet on broadcast mode or unicast mode.
  • ● Standard 1U(19" ) chassis architecture, convenient installation in the standard cabinet.
  • ● With LCD screen display, convenient operation intuitive settings
  • ● Provides 8 standard DMX512 data output port and can output total 8×512 data.
  • ● Compatible with the light software based on Artnet Protocol, control stage lighting and LED lighting simultaneously.



Product parameter

Artnet-DMX-8 4096 channels

Power input DC5V-DC24V (with a power adaptor)
Input signal Artnet
Output signal DMX512
DMX channels 8×512 channels
working temperature -20℃~65℃
Dimension L482.6×W200×H44mm
Package Size L550×W265×H100mm
Weight (G.W) 2200g

Conjunction diagram
Conjunction diagram
