Mini LED Controller

There's less of it, but no less to it.

Mini series LED controller collected pithy research and development of LED controller for 12 years, abandon the past there are many disadvantages of infrared remote control, using advanced RF remote control, wireless signal with strong penetrating power, no longer restricted by all kinds of blockage.

4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful.With innovative technology design:One receiver compatible with six different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.

Mini series with high cost performance and creative design. They can experience humanized design concept when traders in sales, engineers in installation and the clients in using.

Product parameter

M1, M2, M3, M5, M6, M7 Remote Control
Working voltage	DC3V(Battery CR2032 )
Working Frequency	433.92 MHz
Remote Distance	40-50m
Working Temp.	-20℃~55℃
Dimensions	L104×W60×H9mm
Weight (N.W.)	42g


One set weight (G.W.)	120g

M3-3A Receiving controller
Power input	DC12V-DC24V
Max Current load	Max 3A ×3CH
Max Output power	108W/216W (12V/24V)
Compatible remote	M1/M2/M3/M5/M6/M7
Working Temp.	-30℃~55℃
Dimensions	L135×W30×H20mm
Weight (N.W.)	47g

Blister package:

Individual package:

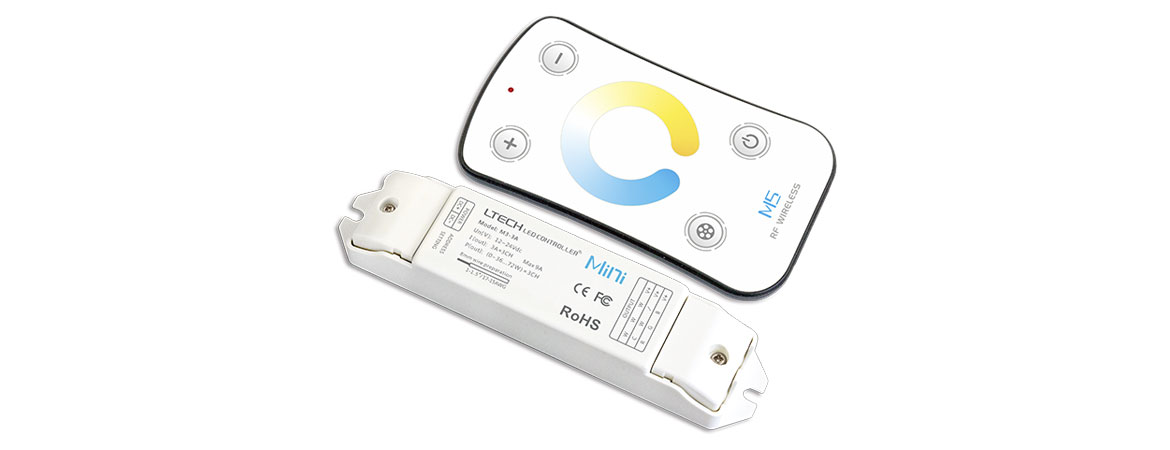

M3-3A Receiver

Remote Control

Product feature

Small figure, big function

Mini controller volume is only 1/3 of the conventional controller, but can implement features such as dimming, RGB and color temperature control.

Chic, very talented

Back of remote control through a scrub treatment,it isn't easily slipped in your hands;it's show noble beacuse it use piano black with white edges on table in stark contrast.Perfect size, one-hand control,perform well.

6 Remote controllers for optional

One receiver compatible 6 different functions remote controllers. Dimmer, color temperature,RGB, select what you want. Such as, M3,M6 and M7 control the receiver connected with RGB lights meanwhile, and function is 3 times than general ones.

10 remote control for 1 receiver

1 receiver can be controlled by 10 same or different RF remote at most for dimming .

RF radio frequency (RF) remote control, strong penetration ability of the wall

RF radio frequency (RF) remote control, wireless signal strong penetrating power, even if there is an obstacle in front can be controlled, the partition of remote control; ID code, independent each other

To simplify

Well-designed remote control operation key, Useful features, rejection of complex instructions,enjoy the colorful world.

Low power consumption

The touch color wheel remote control is used new circuit design which will be lower power consumption, Only use CR2032 button batteries, the first one in the industry, making the remote control more lighter and thinner.

Humanized wall bracket

With this humanized wall bracket which can fix the remote on obviously place of wall,You will not be bothered to find the remote.
