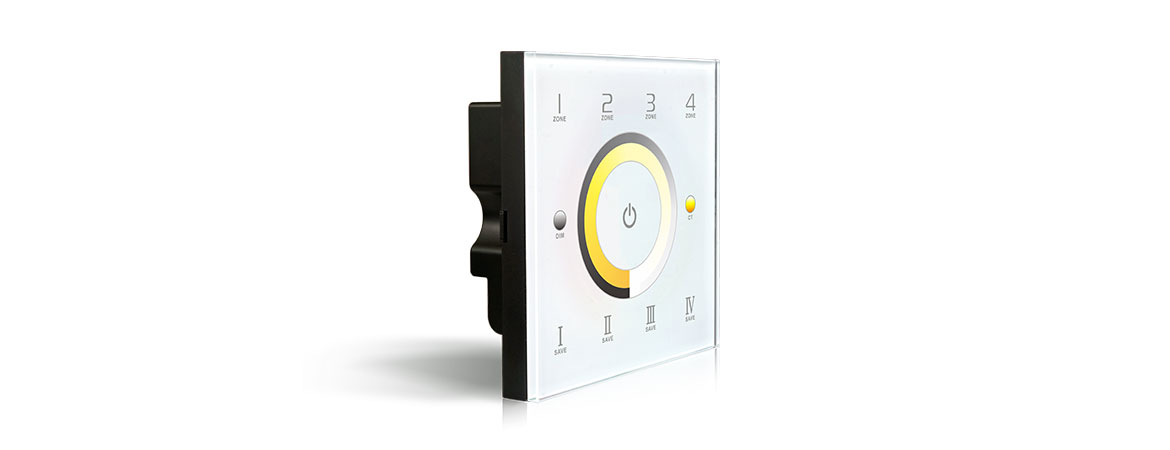

D series touch panel controller

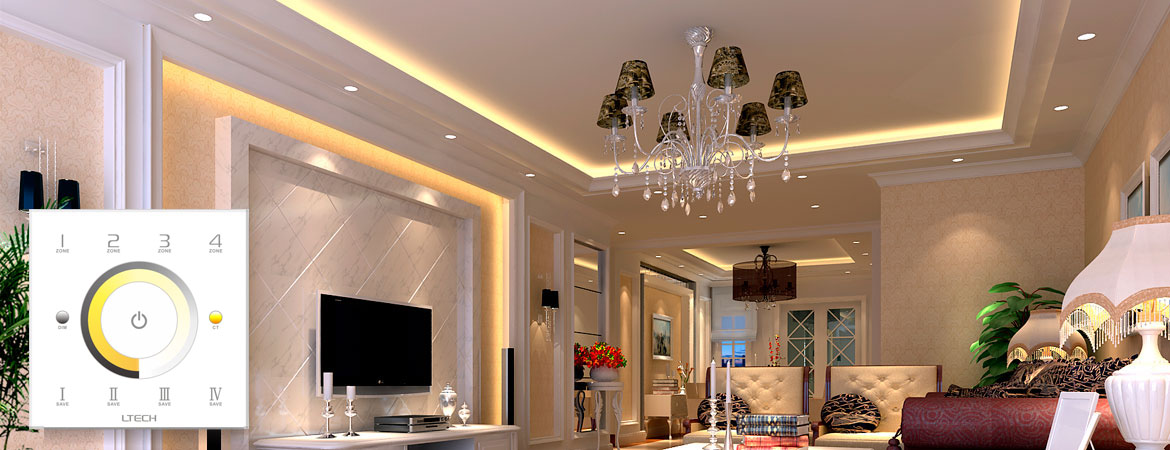

D series touch panel controllers(D1-D8) are wall-mounted LED controllers, widely used for commercial/office/household lighting, workable for dimming, color temperature, RGB and RGBW control. Among them, D5, D6, D7 and D8 are DMX512 control panels, used for DMX512 lamps. In a word, D series could satisfy the controlling demand for all kinds of LED lighting products.

D series touch panel controller absorts the best controlling technology from other manufacturers. to provide users with more superior items.

simple fashion and decent appearance design.
Unique structure, super easy to install/remove.
Support DMX 512 output(only D5, D6, D7, D8), control DMX lamps.
Support 4 zones(Just D5, D6, D7, D8), different zones can be in different control.
high accuracy touching IC+special post-processing ,the touching accuracy is highly strengthened.
Fool type operation, easy to use.
Touching along with chord music & LED indicator.Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.
Pioneered T-PWM dimming technology makes an almost perfect dimming/ color-mixing performance.

Product parameter

Single zone series

D1
Input voltage	DC12V~DC24V
Max current load	4A x3CH Max 12A
Max output power	144W/288W(12V/24V)
Working temperature	-30℃～55℃
Dimensions	L86×W86×H36mm
Package Size	L112×W112×H48mm
Weight (N.W.)	210g

D2
Input voltage	DC12V~DC24V
Max current load	4A x2CH Max 8A
Max output power	96W/192W(12V/24V)
Working temperature	-30℃～55℃
Dimensions	L86×W86×H36mm
Package Size	L112×W112×H48mm
Weight (N.W.)	210g

D3
Input voltage	DC12V~DC24V
Max current load	4A x3CH Max 12A
Max output power	144W/288W(12V/24V)
Working temperature	-30℃～55℃
Dimensions	L86×W86×H36mm
Package Size	L112×W112×H48mm
Weight (N.W.)	210g

D4
Input voltage	DC12V~DC24V
Max current load	4A x4CH Max 16A
Max output power	192W/384W(12V/24V)
Working temperature	-30℃～55℃
Dimensions	L86×W86×H36mm
Package Size	L112×W112×H48mm
Weight (N.W.)	210g

Multi-zone series

D5
Input voltage	DC12V~DC24V
Output signal	DMX512
Control mode	4 Zones control
Working temperature	-30℃～55℃
Dimensions	L86×W86×H36mm
Package Size	L112×W112×H48mm
Weight (N.W.)	210g

D6
Input voltage	DC12V~DC24V
Output signal	DMX512
Control mode	4 Zones control
Working temperature	-30℃～55℃
Dimensions	L86×W86×H36mm
Package Size	L112×W112×H48mm
Weight (N.W.)	210g

D7
Input voltage	DC12V~DC24V
Output signal	DMX512
Control mode	4 Zones control
Working temperature	-30℃～55℃
Dimensions	L86×W86×H36mm
Package Size	L112×W112×H48mm
Weight (N.W.)	210g

D8
Input voltage	DC12V~DC24V
Output signal	DMX512
Control mode	4 Zones control
Working temperature	-30℃～55℃
Dimensions	L86×W86×H36mm
Package Size	L112×W112×H48mm
Weight (N.W.)	210g

Product feature

High-grade tempered glass panel

Adopt high-grade tempered glass panel, super easy to operate and with a bounch of outstanding featueres: nobleness & elegance, well protected against moisture, water, Corrosion and dust. Easy to clean. high strength, nonbreakable and Scratch Resistance, Non-defrmation, nondiscolouring, durable .

Latest human detection design. Capacitive touching sensor

High accuracy touching IC+special post-processing, the touching accuracy is highly strengthened, soft to the touch but highly sensitive.

Support multi-zones control

Support 4 zones(only D5, D6, D7, D8), different zones can be in different control, easily and simple for engineering installation

DMX512 Output

D5, D6, D7, D8 Support DMX512 output, can be used as a master, control DMX lamps.

Humanized touch circle

Equipped with single color, two colors or colorful touch circle. adopt high accuracy Capacitive touch control chip, increases touch sensitivity and decreases mistaken triggering. Makes LED dimming and color chosen more humanized.

Touching along with chord music

LED indicator emits pale blue light when touching the keys, along with beautiful chord music. Visual & Auditory & Touch 3 layers to feel the light-changing synchronously.

LED night indicator

With the LED indicator it is very easy to find the switch in the dark

T-PWM dimming technology

Pioneered T-PWM dimming technology makes an almost perfect dimming/ color-mixing performance.

Scenes Save & playback

Users could save the designed lighting effects anytime, anywhere for playback next time.

Installed in standard 86 boxes

Professional shell design combined with sealed PCB, super easy to install & remove. Unlike the similar ones in the market. Which needs to take the controller apart while installation, the PCB will be exposed and easily damaged during this course.
