LTECH developed a new 0/1-10V to PWM dimming driver which has solved the compatible problem of the fluorescent dimming system and the LED illumination. LED lamps can be controlled by many traditional intelligent dimming systems such as Lutron, Dynalite, Tridonic, Schneider, Clipsal, Osram, Philips, ABB, etc.
One LT-701-CC substitutes 10-30 models of the same kind on the market, provide a secure, facilitate and low-cost solution for LED lighting projects.

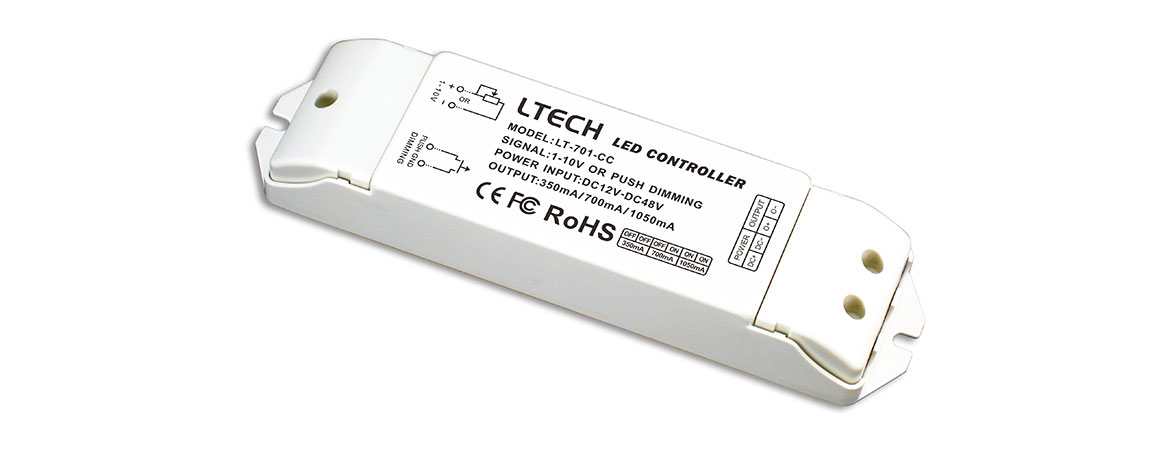

LT-701-CC CC 0-10V, 1-10V Dimming Driver |
|
| Input signal | 0/1-10V, 10V PWM, resistor or push button |
| Input voltage | DC12V~DC48V |
| Output voltage | DC3V~DC46V |
| Output current | CC 350/700/1050mA 3 in 1×1CH |
| Output power | 1.05W~48.3W×1CH |
| Dimming Range | 0~100% |
| working temperature | -30℃~55℃ |
| Dimension | L175×W44×H30(mm) |
| Package Size | L178×W48×H33(mm) |
| Weight (G.W) | 125g |
Wide Applicable Range
Compatible with the active/passive 0-10V, 1-10V, 10V PWM, resistor and the PUSH BUTTON insert dimming.
3 in 1 Optional Current(inventive patent)
By working with our CV 0-10V, 1-10V dimming driver LT-701-10A, the basic issue that related LED projects and needs 0-10V, 1-10V dimming can be solved!
One LT-701-CC substitutes 10-30 models of the same kind on the market, save all the trouble for both the trader and constructor!
which is more secure and cost-effective!
If you're the trader |
Save inventory investment ,if choosing the general dimming driver on the market, may need dozens to meet the demand of different current and power input. increasing communication and technical difficulties. |
If you're the constructor |
Save installation trouble, if choosing the general dimming driver on the market, different current LEDs require different model, once connection error occurs, either burn the LEDs with high current input or can't achieve the brightest with the low current. |
If you're the end-user |
Flicker-free, comfortable and natural dimming effect makes you fully feel a good life brought by LED. |
