LED WiFi Controller WiFi-103

  • Description
  • Video
  • Download
Brief introduction


WiFi-103 is a versatile office/home lighting control system. Through WiFi function build-in mobile devices could control various types of LED lighting products after installing related software on our ios or Android phones, tablet PCs and other mobile devices. It makes the led lighting control more intelligence, networking and humanization.

One WIFI-103 controller can be used as dimmer, CT controller, even RGB controller, which means a significant saving to middleman who need to stock up, now one product will realize your three desires.

WiFi - 103 control system supports direct or through a router two network connection mode:

● As a direct way, mobile phone, pad can directly control the WiFi - 103 controller a wireless control, without any third party of network equipment ;

● Through a router connection, in addition to reach all the functions of direct connection, and will not affect the normal Internet access router at the same time, a more important role is to support the software interface to switch muti-control systems, control independent of each other systems more convenient.

In addition, this model has DIY function. Users can get any effect they want based on our controlling software. If you don't have any mobile devices with the controlling software at hand, you could also use our 2.4G RF remote control--T series(T1, T2, T3) to control it , which provides more choices!


Performance Features
  • ● Support both wifi control of Apple products (iPod, iPad, iPhone) , Android mobile devices like samsung, HTC and RF wireless remote
  •     control More flexible, efficient, intelligent.
  • ● With the 3-in-1(RGB, dimming, CT) apple/android mobile device App. one machine multipurpose to suit different lighting application
  •     scenarios.
  • ● Built-in 32 fixed modes, 8 DIY modes which are programmable. infinite changes mixed by the three primary colours--red, green and
  •     blue.
  • ● Save scenes anytime anywhere for next play.
    • ● WiFi and remote wireless control are all based on global universal 2.4 GHZ frequency band to work, share a root 2.4 G antenna, avoid
    •     bringing space pollution by WiFi and remote control using different frequency wireless signal.
    • ● Optional CV/CC wireless sync control, it is easy to add sub-control for WiFi master controller in not enough power, wireless
    •     connection in different zones. CV/CC sub-control can connect different kinds of LEDs.
    • ● Realize simple zones control function in connecting multi-master.
Software technical parameters
Platform Android 2.1 or above, IOS4.3 or above, with the wifi function
Size IOS(4.5MB), Android(4.2MB)
Language English
Category Tool
Others Free, plug-in-free

Download (Scan QR Code via mobile phone)
Product parameter

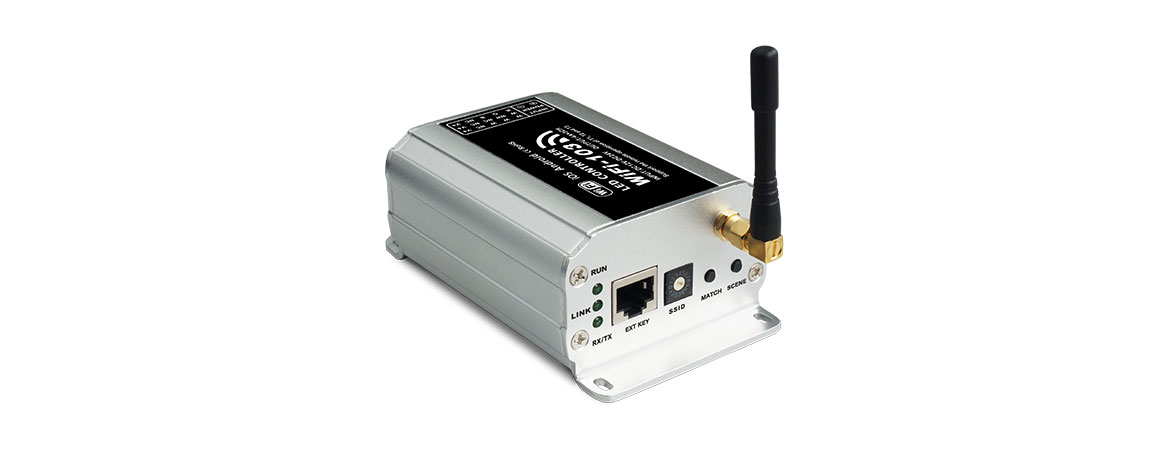

  • WiFi-103 Controller

    Communication standard 2.4GHz Wi-Fi, 802.11b/g/n protocol
    Input voltage DC12V-DC24V
    Max current load 4A×3CH   Max 12A
    Max output power 144W/288W(12V/24V)
    control distance 100m (Distance of cross-eyed)
    RGB color change mode 32 fixed modes, 8 DIY modes
    scene mode 9
    Working temperature -20℃~50℃
    Dimension L128×W73×H45mm
    Package size L135×W80×H50mm
    Weight (G.W.) 315g
  • T1, T2, T3 Remote Control

    Input voltage DC5V (Built-in Lithium battery)
    Working current ≤30mA
    Working frequency 2.4GHZ
    transmitting distance 30m (Distance of cross-eyed)
    Battery capacity 1000mAh
    Standby time ≤6 months
    Dimension L145×W55×H22mm
    Package Size L168×W102×H28mm
    Weight (G.W) 200g
  • T3-CC Receiving controller (current 3 in 1)

    Working Frequency 2.4GHz
    Input voltage DC12V-DC48V
    Output voltage DC3V-DC46V
    Output current CC 350/700/1050mA ×3CH
    Output power 1.05W~48.3W ×3CH  Max 144.9W
    Remote Distance 50m (Distance of cross-eyed)
    Working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package size L178×W48×H33mm
    Weight (G.W.) 110g
  • T3-CV Receiving controller

    Working Frequency 2.4GHz
    Input voltage DC5V-DC24V
    Max current load 6A×3CH Max 18A
    Max output power 90W/216W/432W(5V/12V/24V)
    Remote Distance 50m (Distance of cross-eyed)
    Working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package size L178×W48×H33mm
    Weight (G.W.) 110g
