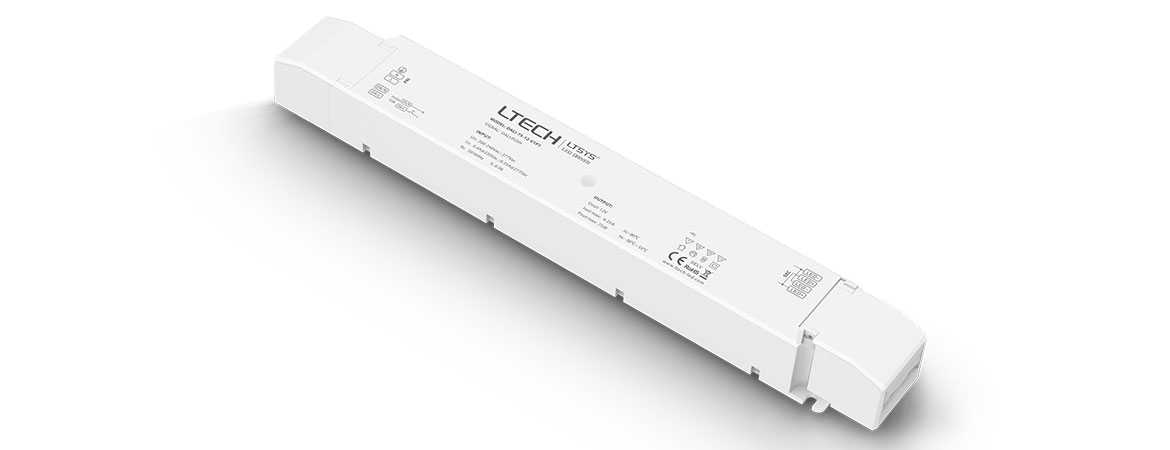

75W 12VDC CV DALI Driver

  • Description
  • Video
  • Download


Dimming Interface:  DALI/PUSH DIM
Dimming Range: 0-100%
Input Voltage Range:  200-240Vac ±10%, 277Vac
Power Factor:
PF>0.96/230Vac , PF>0.95/277Vac, at full load
Efficiency: 91.5%
Output Voltage Range:  12Vdc ± 0.5Vdc
Output Power Range: 1~75W
Output Current:  Max. 6.25A
Working Temperature.: tc: 80℃ ta: -30 ~ 55℃
Dimension: 292×43×30mm(L×W×H)
Packing: 296×44×33mm(L×W×H)
Weight(G.W.): 300g±10g
