LTECH Intelligent dimmable led driver have excellent performance:

  • Fully Digital circuit design, excellent performance and long working life
  • PWM digital dimming, maintain the best LED’s CRI(color rendering index)
  • DALI bus standard: IEC62386,standard DALI logarithmic dimming curve
  • 60000:1 wide dimming range, 0-100% full dimming range,LED start at 0.1% possible
  • Power factor>0.99, Efficiency>86%, THD(Total Harmonic Distortion)<10%
  • Short circuit / Over-temperature / Over load protection
  • Current consistent in multi LED driver working, balanced light
  • Class 2 security isolation power supply
  • Compliant with SELV(Safety Extra Low Voltage) standard



CV DALI Dimmable Driver
  • 75W 12VDC CV DALI Driver
    Model: DALI-75-12-F1M1
    Dimming interface DALI (IEC62386), Push Dim
    Dimming range: 0~100%, LED start at 0.1% possible.
    Input voltage 100-240Vac ±10%
    Power factor PF>0.99/115Vac , PF>0.95/230Vac, at full load
    Efficiency >85%
    Output voltage  12Vdc
    Output power 1~75W
    Output current Max. 6.25A

  • 75W 24VDC CV DALI Driver
    Model: DALI-75-24-F1M1
    Dimming interface DALI (IEC62386), Push Dim
    Dimming range: 0~100%, LED start at 0.1% possible.
    Input voltage 100-240Vac ±10%
    Power factor PF>0.99/115Vac , PF>0.95/230Vac, at full load
    Efficiency >87%
    Output voltage  24VDC
    Output power Max. 75W
    Output current Max. 3.12A

  • 150W 24VDC CV DALI Driver
    Model: DALI-150-24-F1M1
    Dimming interface:  DALI (IEC62386), Push DIM
    Dimming range: 0~100%, LED start at 0.1% possible
    Input voltage:  100-240Vac ±10%
    Power factor:  PF>0.99/115Vac , PF>0.95/230Vac, at full load
    Efficiency: >93%
    Output voltage:  24Vac
    Output power: Max. 150W
    Output current:  Max. 6.25A

  • 150W 12VDC CV DALI Driver
    Model: DALI-150-12-F1M1
    Dimming interface:  DALI (IEC62386), Push DIM
    Dimming range: 0~100%, LED start at 0.1% possible.
    Input voltage:  100-240Vac ±10%
    Power factor:  PF>0.99/115Vac , PF>0.95/230Vac, at full load
    Efficiency: >91%
    Output voltage:  12VDC
    Output power: Max. 150W
    Output current:  Max. 12.5A

  • 75W 12VDC CV DALI DT8 CT Driver(200-240Vac)
    Model: LM-75-12-U2D2
    Dimming Interface: DALI (IEC62386), Push Dim
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Input Voltage Range:  200-240Vac
    Power Factor:  PF>0.97/230Vac, at full load
    Efficiency: >91%
    Output Voltage Range:  12Vdc ±0.5Vdc
    Output Power Range: 0~75W
    Output Current: Max. 6.25A

  • 75W 24VDC CV DALI DT8 CT Driver(200-240Vac)
    Model: LM-75-24-U2D2
    Dimming Interface: DALI (IEC62386), Push Dim
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Input Voltage Range:  100-277Vac
    Power Factor:  PF>0.99/115Vac , PF>0.97/230Vac , PF>0.95/277Vac, at full load
    Efficiency: >92%
    Output Voltage Range:  24Vdc ±0.5Vdc
    Output Power Range: 0~75W
    Output Current: Max. 3.12A

  • 100W 24VDC CV DALI DT8 DIM&CT Driver(200-240Vac)

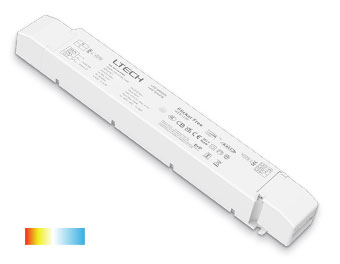

    Model: LM-100-24-G2D2
    Dimming Interface: DALI DT8(IEC62386), Push DIM/CCT
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Input Voltage Range:  200-240Vac
    Power Factor:  PF>0.97/230Vac, at full load
    Efficiency: >93%
    Output Voltage Range:  24Vdc ±0.5Vdc
    Output Power Range: 0~100W
    Output Current: Max. 4.17A

  • 75W 24VDC CV DALI DT8 DIM&CT Driver(200-240Vac)

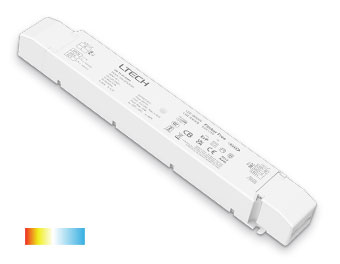

    Model: LM-75-24-G2D2
    Dimming Interface: DALI DT8(IEC62386), Push DIM/CCT
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Input Voltage Range:  200-240Vac
    Power Factor:  PF>0.97/230Vac, at full load
    Efficiency: >92%
    Output Voltage Range:  24Vdc ±0.5Vdc
    Output Power Range: 0~75W
    Output Current: Max. 3.12A

  • 75W 12VDC CV DALI DT8 DIM&CT Driver(200-240Vac)
    Model: LM-75-12-G2D2
    Dimming Interface: DALI DT8(IEC62386), Push DIM/CCT
    Dimming Range: 0~100%, dimming depth: Max. 0.1%
    Input Voltage Range:  200-240Vac
    Power Factor:  PF>0.97/230Vac, at full load
    Efficiency: >91%
    Output Voltage Range:  12Vdc ±0.5Vdc
    Output Power Range: 0~75W
    Output Current: Max. 6.25A

  • 75W 24VDC CV DALI Driver
    Model: LM-75-24-G1D2
    Dimming Interface: DALI (IEC62386), Push Dim
    Dimming Range: 0~100%, LED start at 0.1% possible.
    Input Voltage Range:  200-240Vac, 277Vac (for North America only)
    Power Factor:  PF>0.96/230Vac , PF>0.95/277Vac, at full load
    Efficiency: >91.5%
    Output Voltage Range:  24Vdc ±0.5Vdc
    Output Power Range: 1~75W
    Output Current: Max. 3.12A

  • 75W 12VDC CV DALI Driver
    Model: LM-75-12-G1D2
    Dimming Interface: DALI/PUSH DIM
    Dimming Range: 0~100%, LED start at 0.1% possible.
    Input Voltage Range:  200-240Vac ±10%, 277Vac
    Power Factor:  PF>0.96/230Vac , PF>0.95/277Vac, at full load
    Efficiency: >91.5%
    Output Voltage Range:  12Vdc ± 0.5Vdc
    Output Power Range: 1~75W
    Output Current: Max. 6.25A

  • 36W 24VDC CV DALI Driver
    Model: DALI-36-24-F1P1
    Dimming interface DALI/PUSH DIM
    Dimming range: 0-100% LED Startup Current<0.1%
    Input voltage 100-240Vac ±10%
    Efficiency >86%
    Output voltage  24Vdc
    Output power Max. 36W
    Output current Max. 1.5A


  • 36W 12VDC CV DALI Driver
    Model: DALI-36-12-F1P1
    Dimming interface DALI/PUSH DIM
    Dimming range: 0-100% LED Startup Current<0.1%
    Input voltage 100-240Vac ±10%
    Efficiency >85%
    Output voltage  12VDC
    Output power Max. 36W
    Output current Max. 3A
