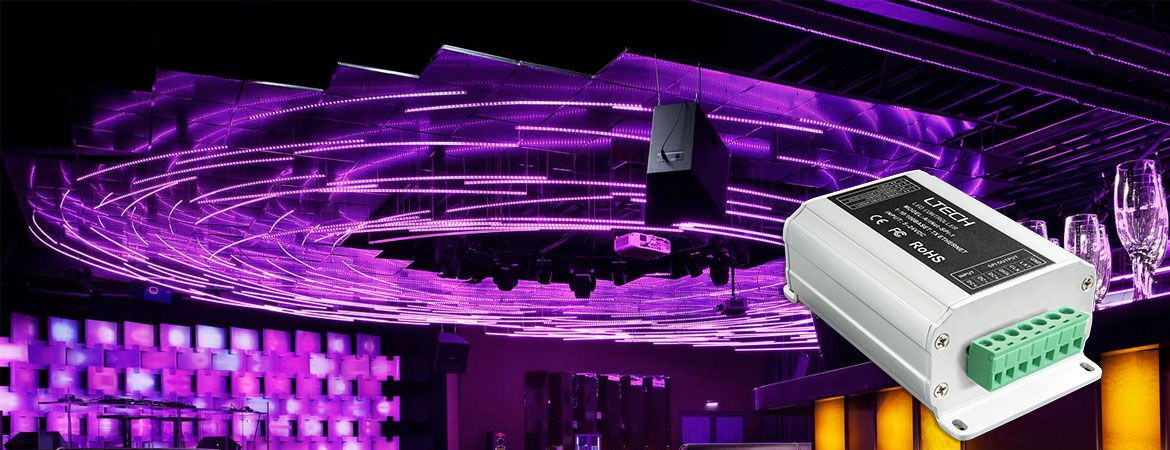

Artnet-SPI converter Artnet-SPI-1

  • Description
  • Video
  • Download
Brief introduction

Artnet-SPI converter is the Ethernet Control System based on the Artnet protocol, used to convert the Artnet network date package into SPI(TTL) digital signal, adopting high-speed ARM processor, stable and reliable working. Following Art-net standard protocol, it support RJ45 network interface and green terminal output interface.

Artnet-SPI-1 can control LED lighting with compatible driving IC, such as TM1804,TM1809,UCS1903,UCS1909,UCS1912,UCS2903,UCS2909,UCS2912,WS2811, WS2812, LPD6803,LPD1101,D705,UCS6909,UCS6912, WS2801,WS2803, P9813, etc

It is compatible with all the effects lighting control software which support Artnet protocol, widely used in the LED dot matrix and the stage lighting.

Performance Features
  • ● Based on Artnet protocol network data communication, accept network DMX data, output one set SPI data ;
  • ● IP address is bound to Subnet, no need to reset, plug and play.
  • ● Manage Artnet on broadcast mode or unicast mode.
  • ● Compatible with the light software based on Artnet Protocol, control LED lighting.



Product parameter

Artnet-SPI-1

Input voltage DC5V-DC24V
Input signal Artnet
Output signal SPI (TTL) Digital Signal
Compatible driving IC TM1804,TM1809,UCS1903,UCS1909,UCS1912,UCS2903,UCS2909,UCS2912,WS2811, WS2812, LPD6803,LPD1101,D705,UCS6909,UCS6912, WS2801,WS2803, P9813
Working temperature -20℃~65℃
Dimension L120×W73×H45mm
Package Size L200×W80×H50mm
Weight (G.W) 290g
