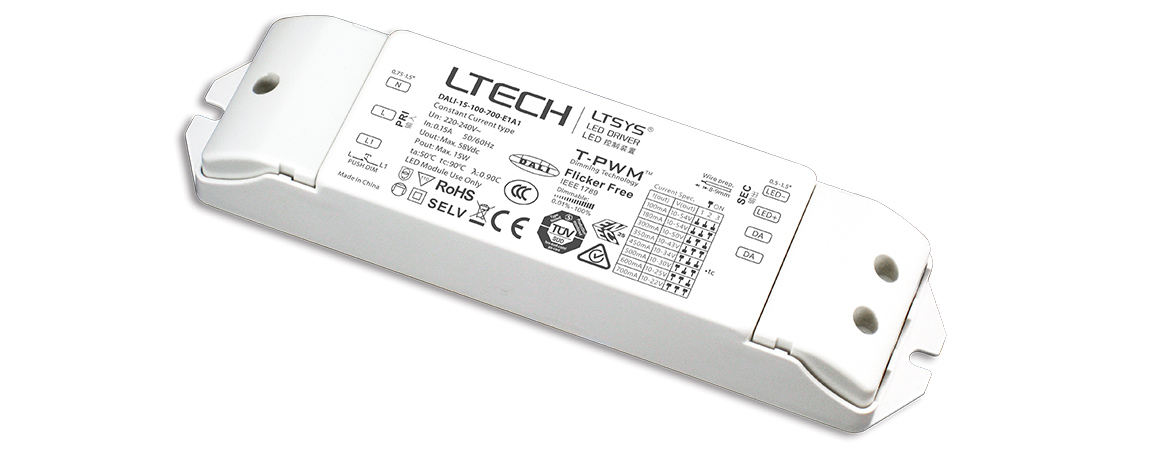

15W 100-700mA CC DALI Driver

  • Description
  • Video
  • Download


Dimming interface: DALI/PUSH DIM
Dimming range: 0-100%, LED Startup Current<0.1%
Input voltage: 220-240Vac ±10%
Efficiency: >83%
Current Accuracy: ±3%
Output voltage: 10-54VDC
CC output: 100mA-700mA
Output power: 1W~15W
working temperature: ta: -30°C ~ 50°C tc: 90°C
Dimension: 167×39×30mm(L×W×H)
Package Size: 168×41×32mm(L×W×H)
Weight (G.W): 160g±10g
