| Wireless network: | Bluetooth 5.0 SlG Mesh, BLE 5.1,Wi-Fi6 2.4G+5G |
| Power Supply: | 100-240V~,50/60Hz,Type-C cable powered, 12V⎓1.5A |
| Display: | 12.3-inch FHD screen, 1920x720 resolution |
| Microphone: | Six omnidirectional microphone array |
| Touchpad: | Capacitive multi-touch screen |
| Speaker: | AAC SLS speaker |
| Materials: | PC+ V0 fireproof grade |
| Interface type: | PC+ V0 fireproof grade |
| Channel of Load: | 2CH |
| Inrush Current in Loads: | Max. 65A@2ms |
| Working Temp.: | -15°C~50°C, Humidity≤85%RH |
| Dimensions: | L317xW141xH42.5(mm) |

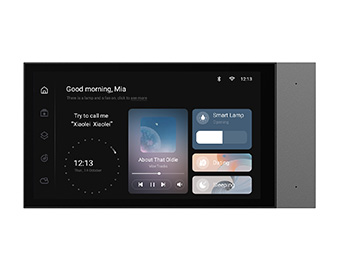

| Wireless network: | Bluetooth 5.0 SIG Mesh , Wi-Fi 2.4G＋5G |
| Power Supply: | 100-240V~,50/60Hz, USB Type-C cable powered, 5V⎓2A |
| Display: | 6-inch full lamination,1280x720 resolution |
| Touchpad: | Capacitive multi-touch screen, anti-fingerprint coating |
| Materials: | PC+ V0 fireproof grade |
| Channel of Load: | 2CH |
| Inrush Current in Loads: | Max. 65A@2ms |
| Working Temp.: | -15°C~50°C, Humidity≤85%RH |
| Dimensions: | L172xW86xH41(mm) |
| Colors: | Grey, Gold, White |
| Wireless network: | Bluetooth 5.0 SIG Mesh , Wi-Fi 2.4G＋5G |
| Power Supply: | 100-240V~，50/60Hz，μ |
| Display: | 4-inch full lamination, 480×480 resolution |
| Touchpad: | Capacitive multi-touch screen, anti-fingerprint coating |
| Materials: | PC+ V0 fireproof grade |
| Channel of Load: | 2CH |
| Inrush Current in Loads: | Max. 65A@2ms |
| Working Temp.: | -15°C~50°C, Humidity≤85%RH |
| Dimensions: | L86×W86×H41(mm) |
| Colors: | Grey, Gold, White |
