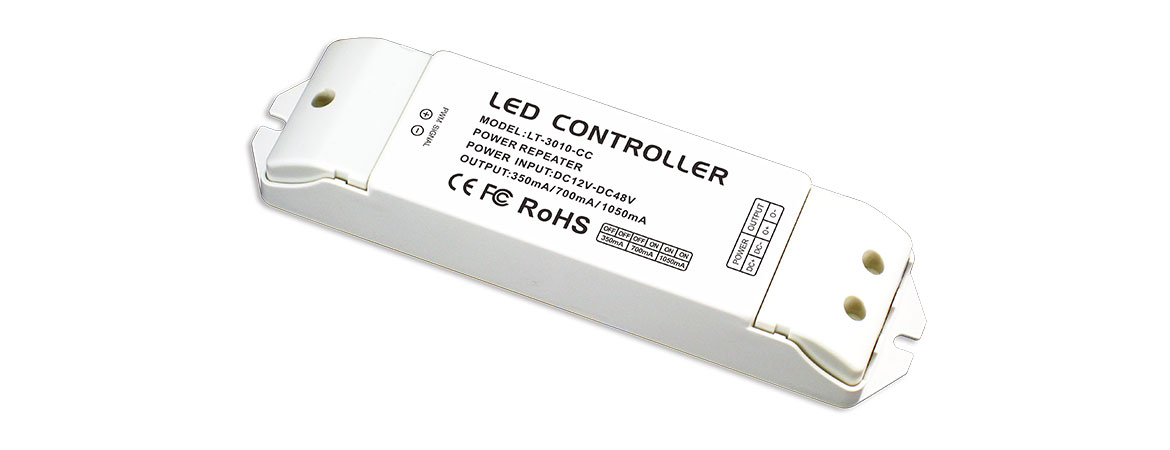

LT-3010-CC CC Power Repeater |
|
| Input signal | PWM |
| Input voltage | DC12V~DC48V |
| Output voltage | DC3V~DC46V |
| Max load current | CC 350/700/1050mA 3 in 1×1CH |
| Output power | 1.05W~48.3W ×1CH |
| Output signal | CC PWM |
| working temperature | -30℃~55℃ |
| Dimension | L175×W44×H30(mm) |
| Package Size | L178×W48×H33(mm) |
| Weight (G.W) | 110g |
