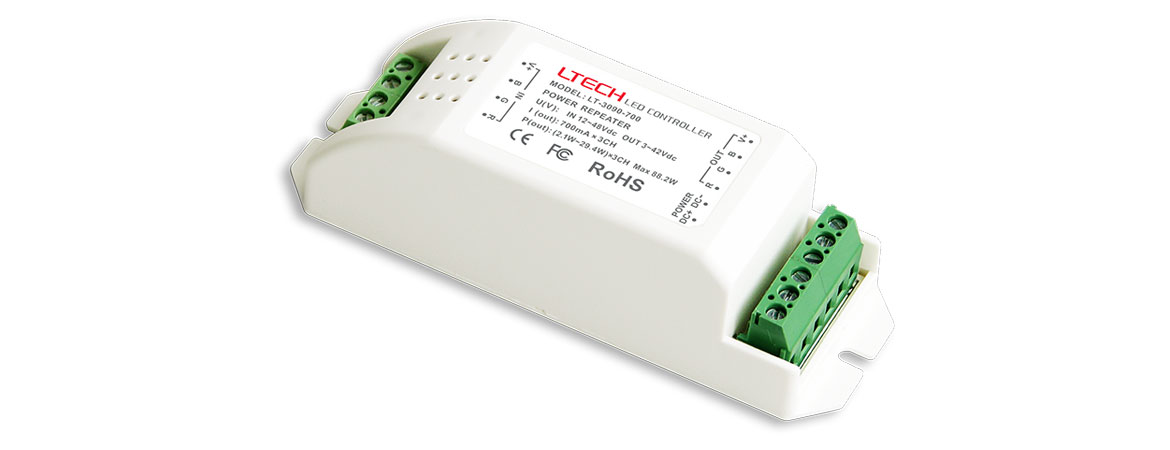

LT-3090-700 CC Power Repeater |
|
| Input signal | PWM |
| Input voltage | DC12V~DC48V |
| Output voltage | DC3V~DC42V |
| Output current | CC 700mA ×3CH |
| Output power | 2.1W~29.4W ×3CH Max 88.2W |
| Output signal | CC PWM |
| working temperature | -30℃~55℃ |
| Dimension | L121×W39×H39(mm) |
| Package Size | L123×W42×H42(mm) |
| Weight (G.W) | 110g |
