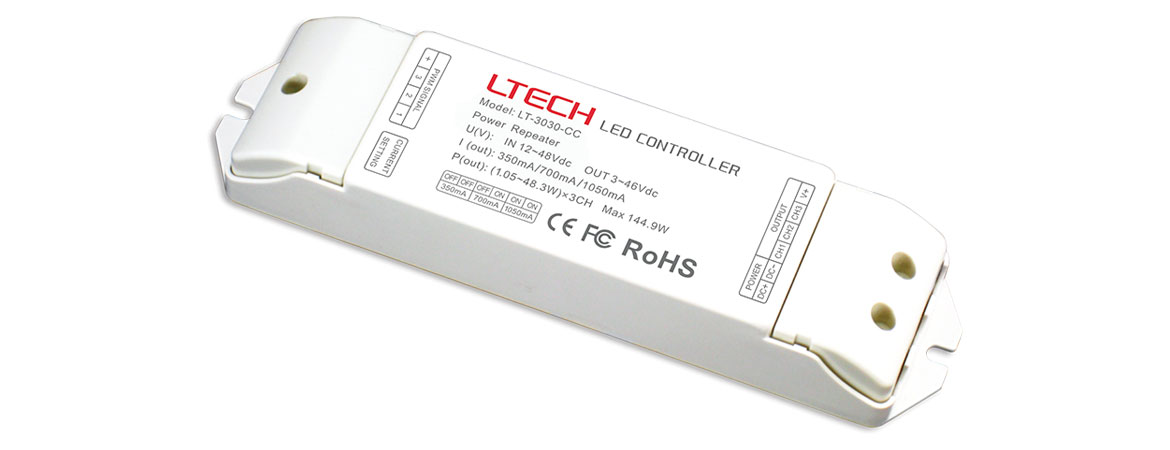

LT-3030-CC CC Power Repeater |
|
Input signal | PWM |
Input voltage | DC12V~DC48V |
Output voltage | DC3V~DC46V |
Max load current | CC 350/700/1050mA 3 in 1×3CH |
Output power | 1.05W~48.3W ×3CH Max 144.9W |
Output signal | CC PWM |
working temperature | -30℃~55℃ |
Dimension | L175×W44×H30(mm) |
Package Size | L178×W48×H33(mm) |
Weight (G.W) | 110g |
