75W 12VDC CV DALI Driver

  • Description
  • Video
  • Download
Product Introduction:
  • 1、Dimming interface: DALI, Push Dim.
  • 2、Dimming range: 0~100%, LED start at 0.1% possible.
  • 3、DALI dimming curve: Liner curve or logarithmic curve.
  • 4、Short circuit / Over-heat / Over load / Over voltage protection.
  • 5、Class 2 power supply. Full protective plastic housing.
  • 6、DALI bus standard: IEC62386-101,102, 207.
  • 7、Compliant with Safety Extra Low Voltage standard.
  • 8、Suitable for indoorⅠ/Ⅱ/Ⅲ type lamps application.
Technical Specs:

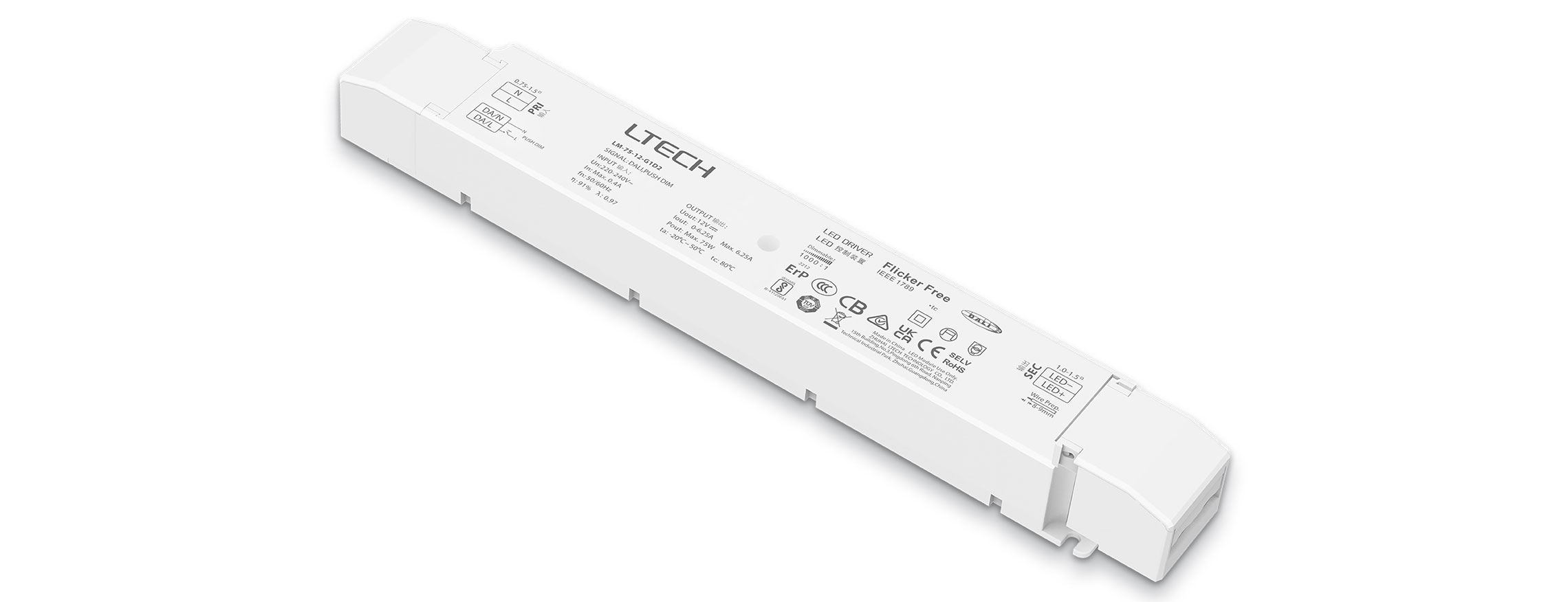

LM-75-12-G1D2

Dimming Interface:  DALI/PUSH DIM
Dimming Range: 0~100%, LED start at 0.1% possible.
Input Voltage Range:  200-240Vac ±10%, 277Vac
Power Factor:
PF>0.96/230Vac , PF>0.95/277Vac
Efficiency: >91.5%
Output Voltage Range:  12Vdc ± 0.5Vdc
Output Power Range: 1~75W
Output Current:  Max. 6.25A
Working Temperature.: tc: 80℃ ta: -30 ~ 55℃
Dimension: 292×43×30mm(L×W×H)
Packing: 296×44×33mm(L×W×H)
Weight(G.W.): 300g±10g
