dali controller

DALI is the young generation lighting control protocol in the realm of lighting control at present, Which adopt Manchester encoding transmission, With overall, grouping dimming, addressing dimming, various scene mode set, brightness traced, etc. powerful dimming function. Modern top grade hotel, shopping mall, household increasingly request high standard to lighting system. DALI protocol bus-mastering with simple, reliable, superior function etc. features, are used widely, showing the powerful advantage in the realm of intelligent lighting control.

DALI bus-mastering protocol is the intelligent lighting master match using with the dimmable ballast before , used to adjust the lighting scenarios of the fluorescent. DALI LED dimmer launched by LTECH which following the IEC62386/IEC60929 standard, can connect any equipment that accord with DALI protocol to 1 DALI bus-mastering ,which realize the LED lighting products and traditional lighting integrated in the same lighting system , greatly facilitate the users.

CV DALI Low Voltage Driver

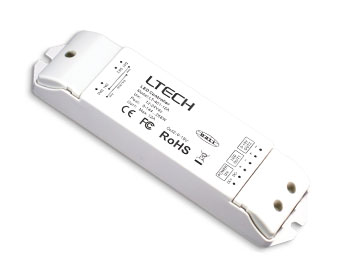

  • CV Dimming Driver LT-401-12A
    Input signal DALI digital dimming signal
    Input voltage DC12V~DC24V
    Output 12A ×1CH + 0-10V ×1CH
    Max output power 144W(12V) 288W(24V)
    Dimming Range 0.1~100%
    working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package Size L178×W48×H33(mm)
    Weight (G.W) 125g

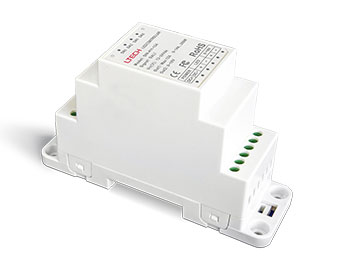

  • CV Dimming Driver DIN-411-12A
    Input signal DALI digital dimming signal
    Input voltage DC12V~DC24V
    Output 12A ×1CH + 0-10V ×1CH
    Max output power 144W(12V) 288W(24V)
    Dimming Range 0.1~100%
    working temperature -30℃~55℃
    Dimension L112×W35×H67(mm)
    Package Size L114×W37×H70(mm)
    Weight (G.W) 120g

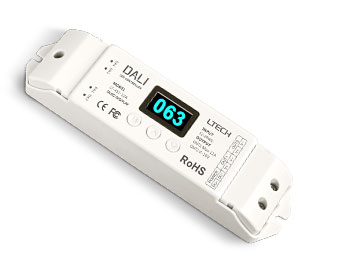

  • CV Dimming Driver LT-451-12A
    Input signal DALI digital dimming signal
    Input voltage DC12V~DC24V
    Output 12A ×1CH + 0-10V ×1CH
    Max output power 144W(12V) 288W(24V)
    Dimming Range 0.1~100%
    working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package Size L178×W48×H33(mm)
  • CV DALI Dimming Driver DIN-413-6A
    Input signal DALI digital dimming signal
    Input voltage DC12V~DC24V
    Output 6A ×3CH   Max 18A
    Max output power 216W(12V) 432W(24V)
    Dimming Range 0~100%
    working temperature -30℃~55℃
    Dimension L112×W35×H67(mm)
    Package Size L114×W37×H70(mm)
    Weight (G.W) 120g
  • CV Dimming Driver LT-401-6A
    Input signal DALI
    Input voltage DC12V~DC24V
    Output 6A ×1CH
    Max output power 72W /144W(12V/24V)
    Dimming Range 0.1~100%
    working temperature -30℃~55℃
    Dimension L135×W30×H20(mm)
    Package Size L140×W34×H23(mm)
    Weight (G.W) 47g
  • Dimming signal converter LT-484
    Input voltage 100-240V AC
    Input signal DALI digital dimming signal
    Output 0-10V x4CH (default)
    5V PWM x4CH
    10V PWM x4CH
    Dimming Range 0.1~100%
    working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package Size L178×W48×H33mm
    Weight (G.W) 110g

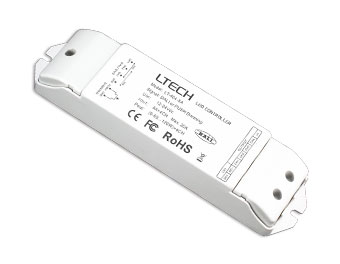

  • DALI Dimming Driver LT-404-5A
    Input signal DALI Push button
    Input voltage 12V~24VDC
    Output 5A ×4CH Max 20A
    Max output power 240W(12V)/480W(24V)
    Dimming Range 0~100%
    working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package Size L178×W48×H33mm
    Weight (G.W) 125g
  • CV Dimming Driver LT-408-5A
    Input signal DALI digital dimming signal
    Input voltage DC12V~DC24V
    Output 5A ×8CH + 0-10V ×8CH
    Max output power 480W(12V)/960W(24V)
    Dimming Range 0.1~100%
    working temperature -30℃~55℃
    Dimension L260×W120×H40(mm)
    Package Size L290×W128×H46mm
    Weight (G.W) 860g
  • CV Dimming Driver LT-403-6A
    Input signal DALI digital dimming signal
    Input voltage DC12V~DC24V
    Max load current 6A ×3CH  Max 18A
    Max output power 216W(12V)432W(24V)
    Dimming Range 0.1~100%
    working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package Size L178×W48×H33(mm)
    Weight (G.W) 132g
  • CV Dimming Driver LT-401-10A
    Input signal DALI digital dimming signal
    Input voltage DC12V~DC24V
    Output 10A ×1CH + 0-10V ×1CH
    Max output power 120W(12V) 240W(24V)
    Dimming Range 0.1~100%
    working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package Size L178×W48×H33(mm)
    Weight (G.W) 125g
  • CV Dimming Driver DIN-411-10A
    Input signal DALI digital dimming signal
    Input voltage DC12V~DC24V
    Output 10A ×1CH + 0-10V ×1CH
    Max output power 120W(12V) 240W(24V)
    Dimming Range 0.1~100%
    working temperature -30℃~55℃
    Dimension L112×W35×H67(mm)
    Package Size L114×W37×H70(mm)
    Weight (G.W) 120g
  • CV Dimming Driver LT-454-5A
    Input signal DALI digital dimming signal
    Input voltage DC5V~DC24V
    Output 5A ×4CH  Max 20A
    Max output power 100W/240W/480W(5V/12V/24V)
    Dimming Range 0.1~100%
    working temperature -30℃~55℃
    Dimension L175×W44×H30(mm)
    Package Size L178×W48×H33(mm)
    Weight (G.W) 150g
  • Total 1 Page 12 Records
