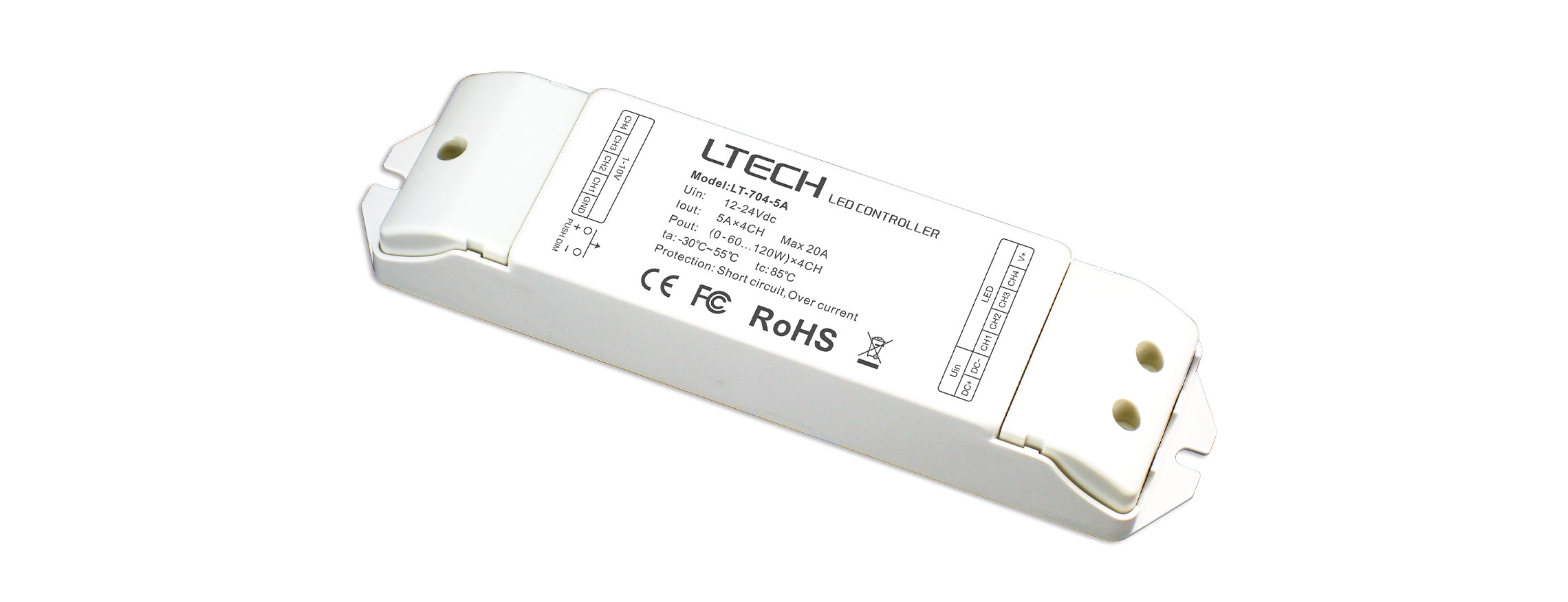

4CH CV 0-10V 1-10V Dimming Driver LT-704-5A

  • Description
  • Video
  • Download
Product Introduction:
  • 1、Dimming interface:0-10V,  1-10V,  10V PWM,  push button.
  • 2、PWM digital dimming, no alter LED color rendering index.
  • 3、Dimming range: 0~100%, LED start at 0.1% possible.
  • 4、Max. current output: 20A.
  • 5、Short circuit / Over current protection, recover automatically.
  • 6、Full protective plastic housing.
  • 7、Suitable for indoor environments.
Technical Specs:

LT-704-5A   4CH CV 0-10V, 1-10V Dimming Driver

Input signal 0-10V, 1-10V, 10V PWM, push button
Input voltage DC12V~DC24V
Max load current 5A ×4CH  Max 20A
Max output power 0-240W...480W
Dimming Range 0~100%, LED start at 0.1% possible.
working temperature -30℃~55℃
Dimension L175×W44×H30(mm)
Package Size L178×W48×H33(mm)
Weight (G.W) 150g
