DMX Controller LT-800

  • Description
  • Video
  • Download
Brief introduction

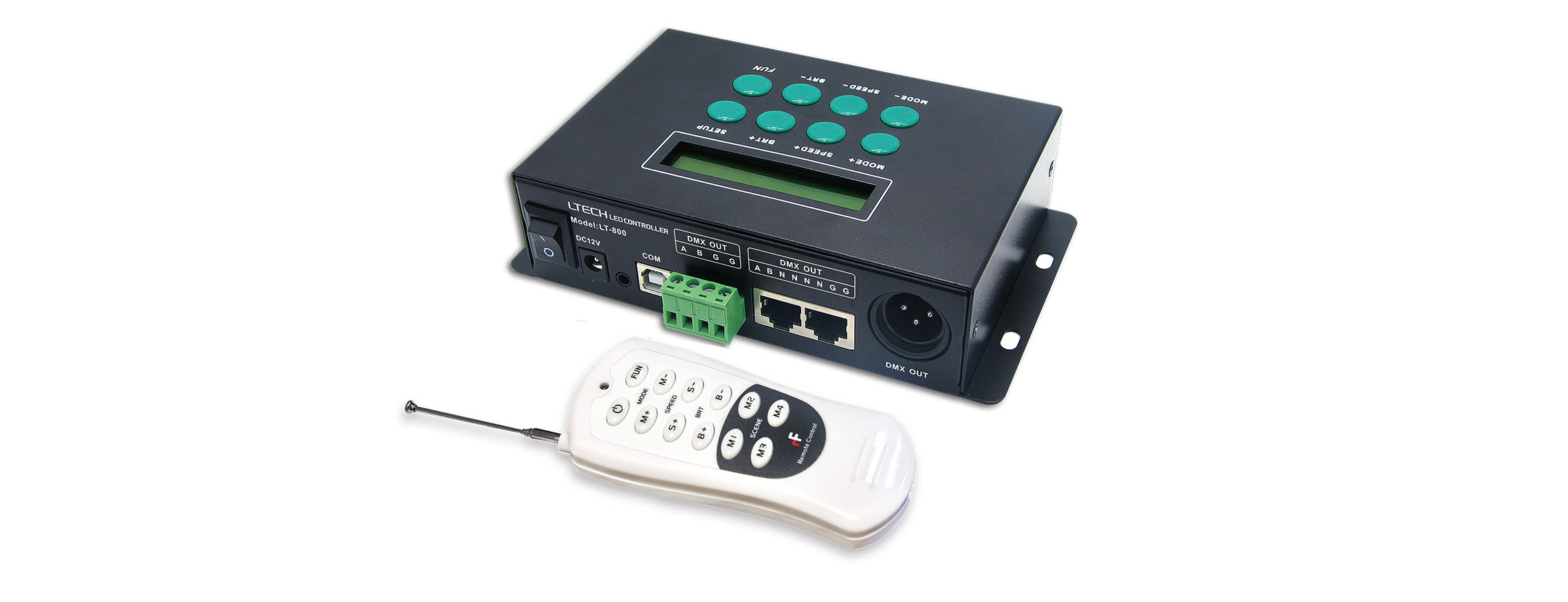

LT-800 DMX512 Controller is the output signal of international standard DMX/1990. It not only can control all the LED lights in the market as long as can receiving the standard DMX signal, but also can work with our DMX Decoder to control general LED lights without DMX512.

LT-800 DMX512 Controller is easy to operate with a LCD screen. available with wireless control and keying control on the changing modes, speed and brightness, automatic timing and more than 580 modes for your choices.

Performance Features
  • 1. With LCD screen,easy to operate in showing all functions.
  • 2.Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in any time, Monday to Sunday or
  • 3. 580 lighting modes such as, full 7 color, skipping synchronism, smooth synchronism, color flow, color chasing, color smooth and flow
        and Meteor shower trailing, etc.
  • 4. Multilevel changing speed, brightness and RGB grey scale adjustment for your choices.
  • 5. Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
  • 6. Output with international Standard signal DMX512/1990, can control 512 DMX channels( 170 full color RGB pixels)
  • 7. Support different output ports like standard XLR-3,RJ45 and Green terminal. etc.
  • 8. With the functions of anti-interference and automatic breakdown recovery.


Product Parameter

Working Voltage DC12 (with an adapter to convert AC100-240V to DC12V)
Power Consumption <2W
Output Signal DMX512
Output Loop 1 Port
Transmission Speed 250Kbps
Change mode 580 modes
Control Quantity

512 DMX channels( 170 pixels)

Dimming range 0~100%
Working Temperature -30℃~65℃
Product Dimensions L163×W108×H40mm
Package Dimensions L260×W132×H46mm
Weight(G.W) 760g
