Dimming Touch Panel Controller UX5

  • Description
  • Video
  • Download
Product parameter

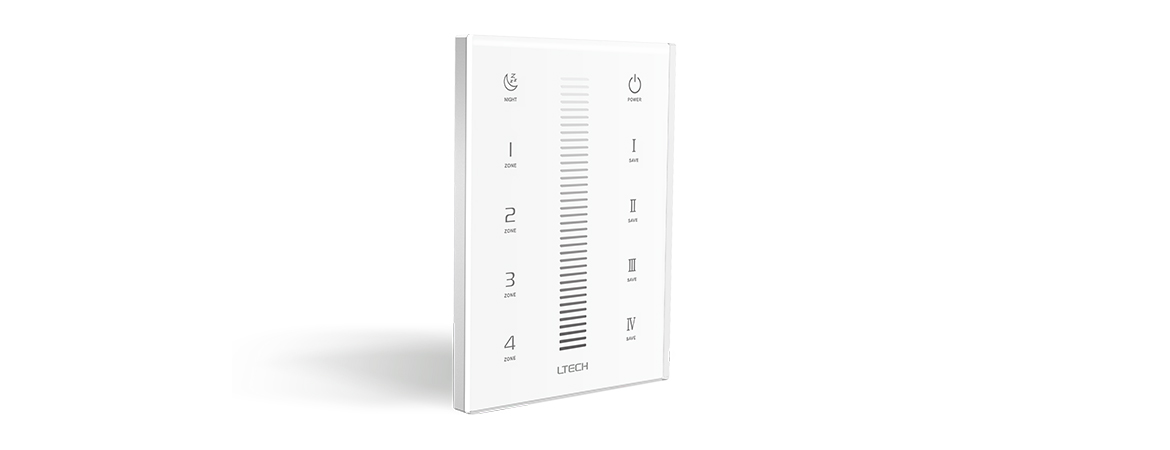

Dimming Touch Panel Controller UX5

Input voltage: 5V DC 1A(with a power adaptor)
Output signal: RF 2.4G+DMX512
Control mode: Dimming, 4 Zones Control
Working temperature: -30℃~55℃
Dimensions: L106×W146×H18mm
Package size L132×W180×H35mm
Weight (N.W.): 370g

R4-3A CV Wireless Receiver

Input voltage: DC5V-DC24V
Max current load: 3A ×4CH Max 12A
Max output power: 60W/144W/288W(5V/12V/24V)
Working temperature: -30℃~55℃
Dimensions: L125×W33×H20(mm)
Package size L132×W192×H50(mm)
Weight (N.W.): 55g

R4-5A CV Wireless Receiver

Working Frequency: 2.4GHz
Input voltage: DC5V-DC24V
Max current load: 5A ×4CH Max 20A
Max output power: 100W/240W/480W(5V/12V/24V)
Working temperature: -30℃~55℃
Dimensions: 175x44x30mm(LxWxH)
Package Size: 178x48x33mm(LxWxH)
Weight (N.W.): 150g

R4-CC CC Wireless Receiver

Working Frequency: 2.4GHz
Input voltage: DC12V-DC48V
Output voltage: DC3V~46V
Output current: CC 350/700/1050mA×4CH(3 in 1)
Working temperature: -30℃~55℃
Dimensions: 175x44x30mm(LxWxH)
Package Size: 178x48x33mm(LxWxH)
Weight (N.W.): 165g
