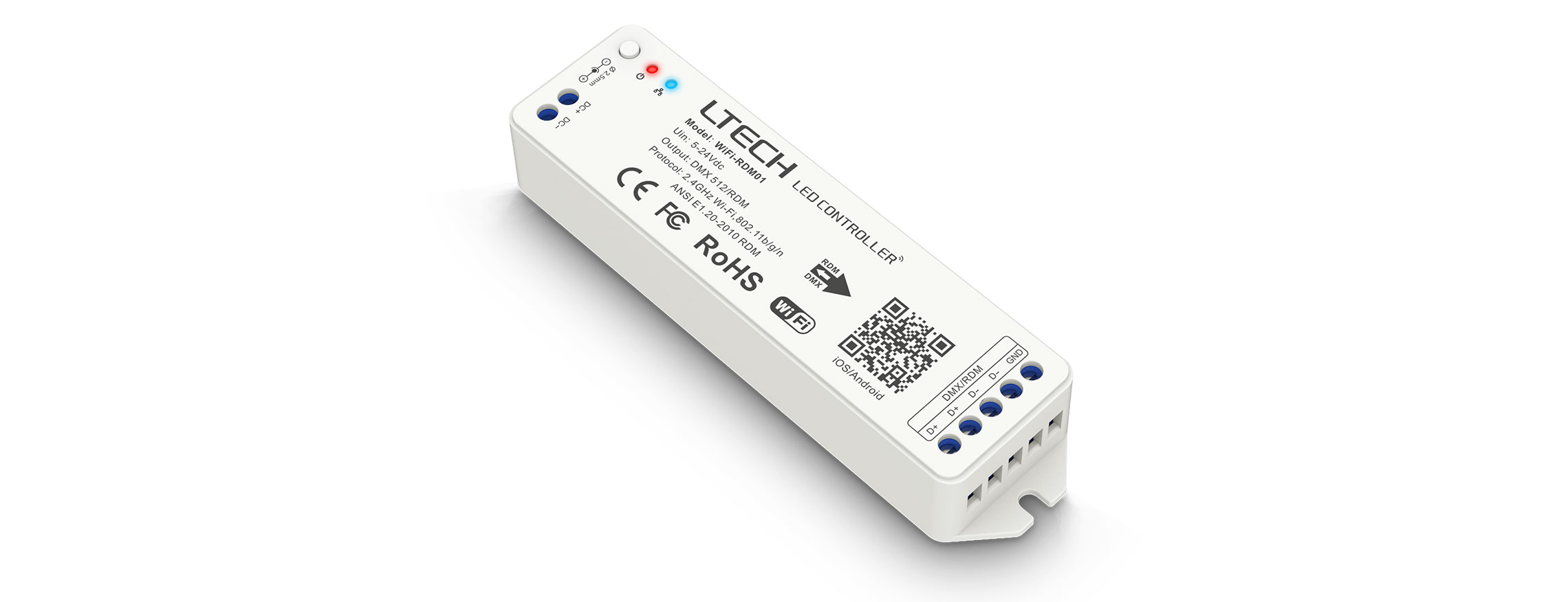

RDM WiFi Controller WiFi-RDM01

  • Description
  • Manual
  • Video
  • Related

  • WiFi-RDM01 is the RDM master control, which browsing and setting corresponding parameters of the equipment with RDM protocol through the RDM standard protocol.
  • WIFI-RDM01 uses the Wifi module, which can wireless control by the phone's APP and suppor ting to upgrade the firmware remotely. it is convenient for customers' using the most functional and latest firmware version.
  • WiFi-RDM01 can be compatible with other brand's product with RDM protocol, and it does not affect the normal operation of other products when hangs on the bus.
Model: WiFi-RDM01
Protocol: 2.4GHz Wi-Fi, 802.11b/g/n,ANSI E1.20-2010 RDM
Input voltage: 5-24Vdc
Output: DMX512/RDM
Working temperature: -30℃~55℃
Dimensions: L125×W33×H20mm
Package size: L127×W35×H24mm
Weight (G.W.): 110g

Video:
