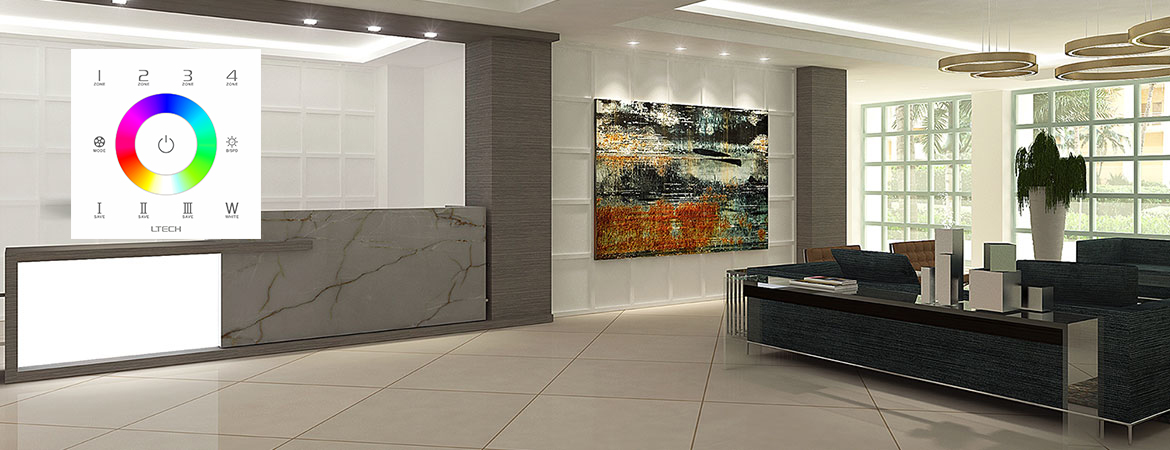

EX8S RGBW Touch Panel (4 zones)

  • Description
  • Manual
  • Video
  • Related

Product parameter


EX8S RGBW Touch Panel (4 zones)

Input Voltage::  100-240Vac
Output Signal: RF 2.4GHz, DMX512
Control mode:  Synchronous control
Working Temp.: -30℃~55℃
Dimensions: L86×W86×H36(mm)
Package Size: L113×W112×H50(mm)
Weight(G.W.): 225g

F4-3A CV Receiver

Input Voltage: 5~24Vdc
Current Load: 3A × 4CH Max. 12A
Max Output Power: (0~15W...72W)×4CH Max. 288W
Working Temp.: -30℃~55℃
Dimensions: L125×W33×H20(mm)
Package Size: L127×W35×H24mm
Weight(G.W.): 60g
Wireless Signal: 2.4GHz

F4-5A CV Receiver

Input Voltage: 5~24Vdc
Current Load: 5A × 4CH Max. 20A
Max Output Power: (0~25W...120W)×4CH Max. 480W
Working Temp.: -30℃~55℃
Dimensions: L175×W44×H30(mm)
Package Size: L178×W48×H33mm
Weight(G.W.): 150g
Wireless Signal: 2.4GHz

F4-CC CC Receiver

Wireless Signal: 2.4GHz
Input Voltage: 12-48Vdc
Output Voltage: 3~46Vdc
Output Current: CC 350/700/1050mA×4CH
Output Power: (1.05W~48.3W)×4CH Max 193.2W
Working Temp.: -30℃~55℃
Dimensions: L175×W44×H30mm
Package Size: L178×W48×H33mm
Weight(G.W.): 165g
