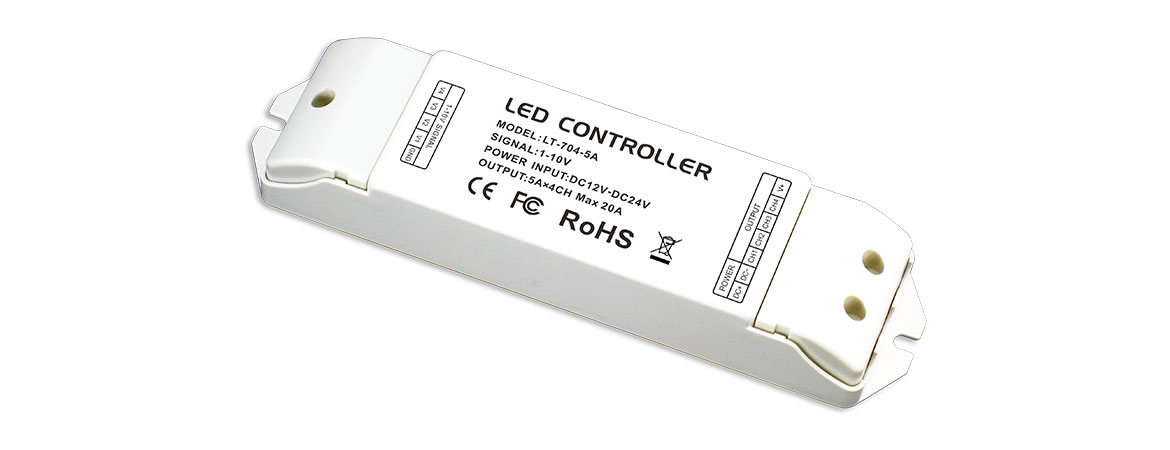

LT-704-5A 4CH CV 0-10V, 1-10V Dimming Driver |
|
| Input signal | 0-10V, 1－10V, 10V PWM, resistor |
| Input voltage | DC12V~DC24V |
| Max load current | 5A ×4CH Max 20A |
| Max output power | 240W/480W(12V/24V) |
| Dimming Range | 0~100% |
| working temperature | -30℃~55℃ |
| Dimension | L175×W44×H30(mm) |
| Package Size | L178×W48×H33(mm) |
| Weight (G.W) | 130g |
