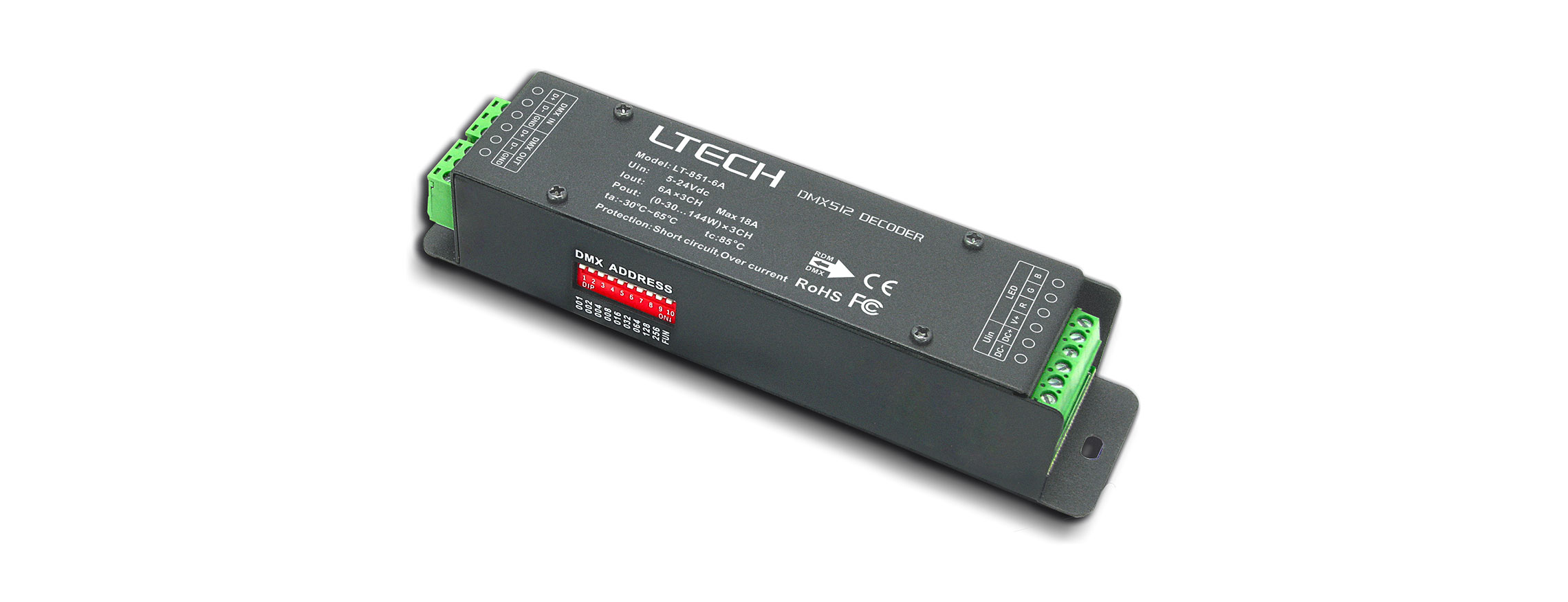

3CH CV DMX Decoder LT-851-6A

  • Description
  • Video
  • Download

3CH CV DMX Decoder LT-851-6A

Input signal DMX512, RDM
Input power DC5V~DC24V
Max load current 6A×3CH Max. 18A
Max output power (0~30W...144W)×3CH Max. 432W
DMX512 socket Green terminal
Dimming range 0~100%
Working temperature -30℃~65℃
Dimension L175×W42×H33mm
Package Size L178×W46×H40mm
Weight (G.W) 310g

Video:

Click the following icon to download
pdf
