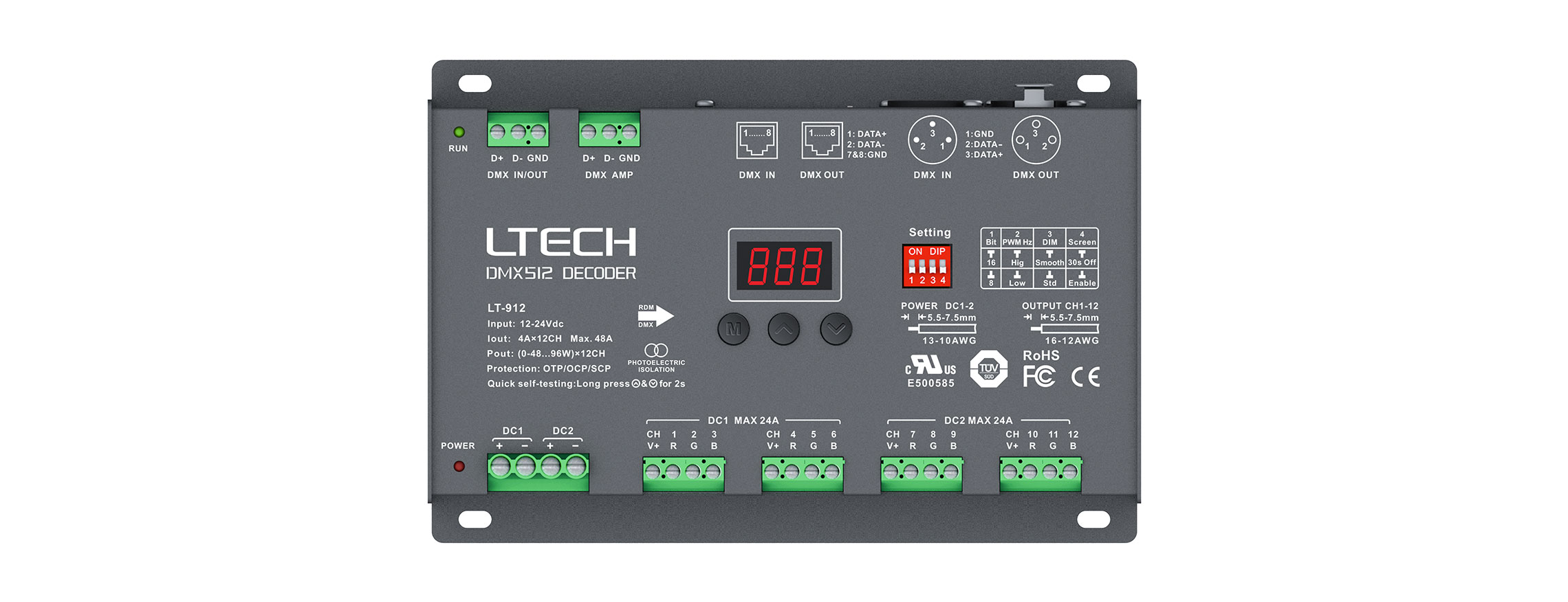

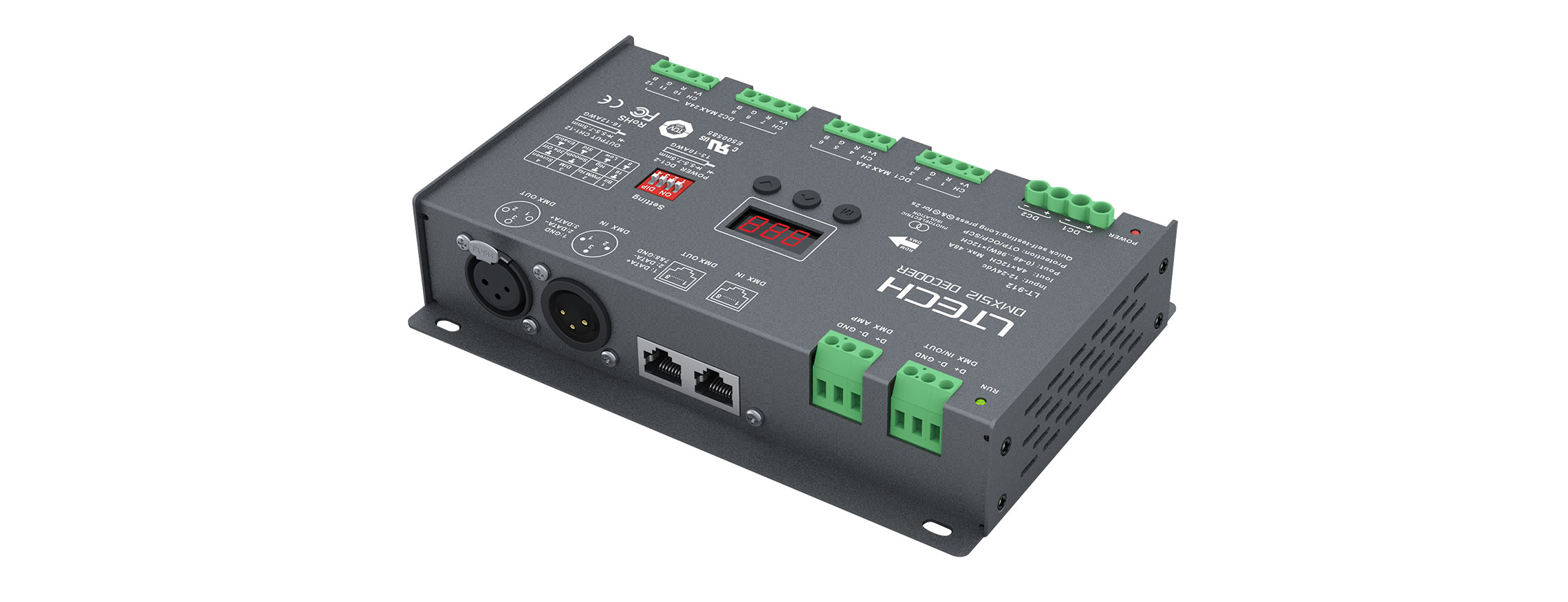

12CH CV DMX Decoder LT-912

  • Description
  • Video
  • Download
Product Introduction:
  • 1.Designed for Hi-power multiple channels application, 12 channels output, and up to 1152W output power.
  • 2. Easy operation with OLED screen and the touch buttons.
  • 3. Support 3 kinds of DMX ports : 3-pin XLR, RJ45 and green terminal (with signal amplifier function).
  • 4. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting, equipment recognition, etc.
  • 5. With shortcut protection and over load protection, as well as warning function when fault.
  • 6. With fast self-testing function.
  • 7. High/low PWM frequency for optional.
  • 8. 16bit (65536 levels) / 8bit (256 levels) grey level optional.
Technical Specs:

Input signal DMX512/RDM
Input voltage DC12V~DC24V
Max load current 4A × 12CH Max 48A
Max output power (0~48W...96W) × 12CH Max. 1152W
DMX512 socket 3-pin XLR, RJ45
Gray scale level 8bit(256 levels)/16bit(65536 levels)
Working temperature -30℃~65℃
Dimension L180×W122×H39mm
Package Size L193×W127×H41mm
Weight (G.W) 730g
