3CH CV DMX Decoder LT-830-8A

  • Description
  • Video
  • Download

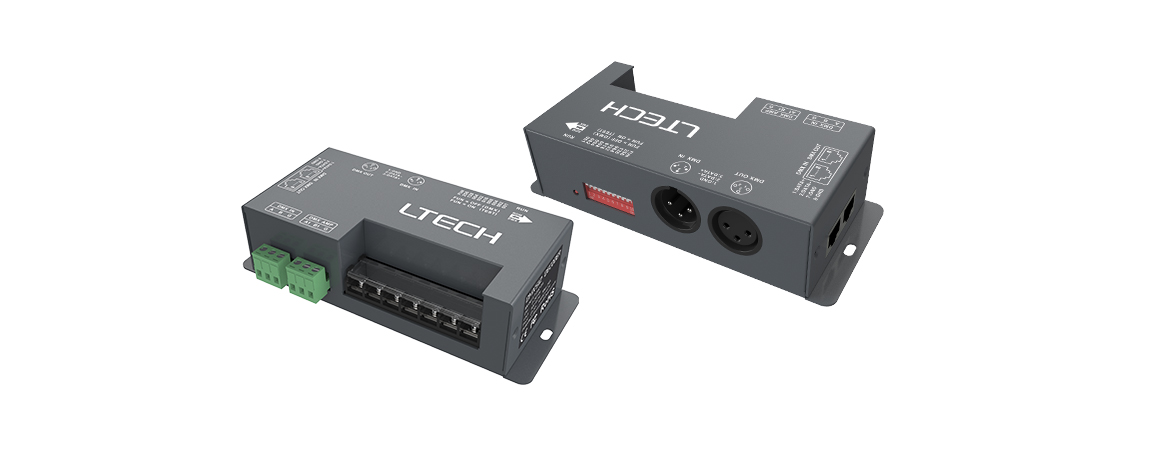

LT-830-8A 3CH CV DMX Decoder LT-830-6A

Input signal DMX512
Input power DC5V~DC24V
Max load current 8A ×3CH   Max 24A
Max output power (0~50W...192W)×3CH Max. 576W
DMX512 socket XLR-3, RJ45, Green terminal (with signal amplification function)
Dimming range 0~100%
Working temperature -30℃~65℃
Dimension L156×W78×H40(mm)
Package Size L180×W82×H50mm
Weight (G.W) 430g
