3CH CV DMX Decoder LT-851-5A

  • Description
  • Video
  • Download

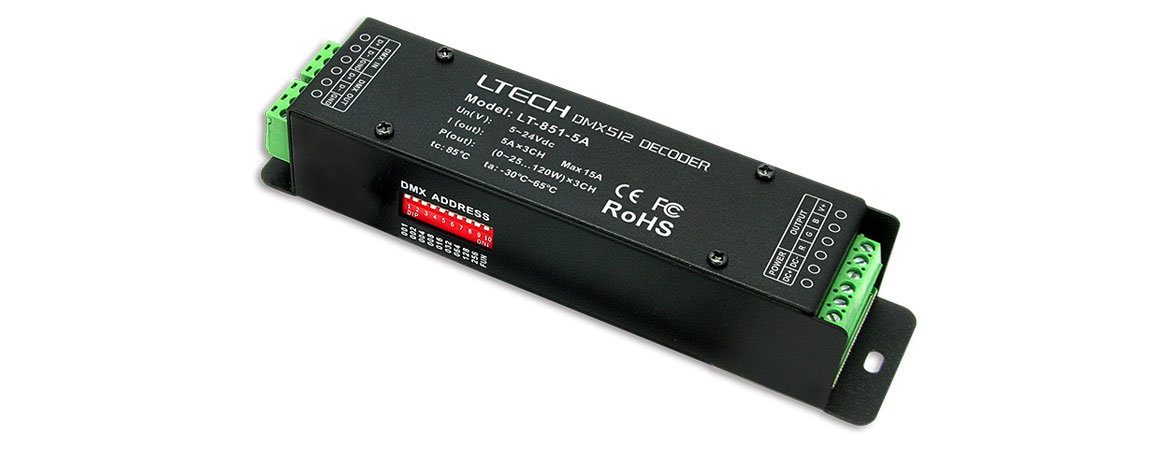

LT-851-5A 3CH CV DMX Decoder

Input signal DMX512
Input power DC5V~DC24V
Max load current 5A ×3CH   Max 15A
Max output power 75W/180W/360W(5V/12V/24V)
DMX512 socket Green terminal
Dimming range 0~100%
Working temperature -30℃~65℃
Dimension L175×W42×H33mm
Package Size L178×W46×H40mm
Weight (G.W) 310g
