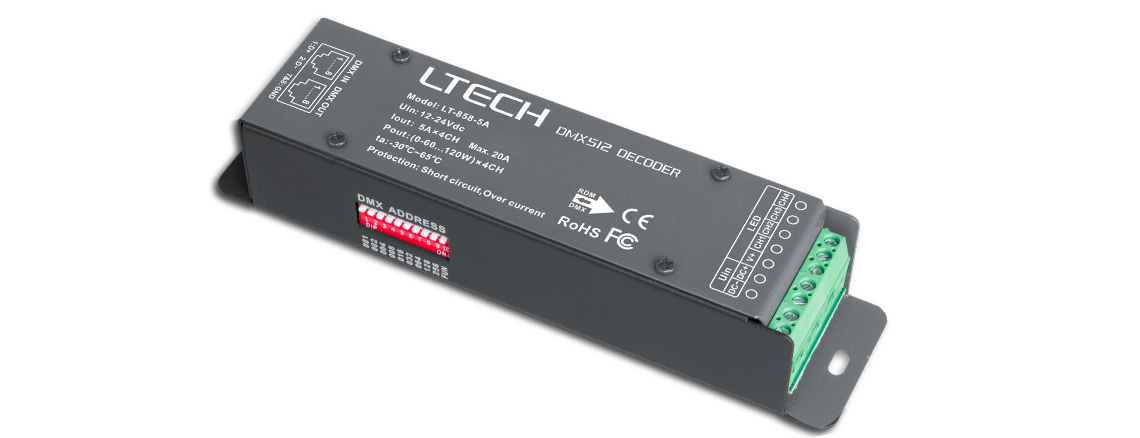

4CH CV DMX Decoder LT-858-5A

  • Description
  • Manual
  • Video
  • Related

DMX Decoder adopted the advanced micro-electronic control technology to convert universal DMX512/1990 digital signal to CC/CV PWM signal to drive LED, which controlled by DMX512 console, realize 0-100% brightness or various changing effect. And can control single color, dupi-color, RGB, RGBY, RGBW, RGBA LED lights.

Have excellent performance:

  • 16-bit dimming curve.
  • Frame rate is as high as 850 frames per second./li>
  • Built-in protection circuit of resistance to lighting stroke and ESD static electricity.


Performance Features
Shell baking finish
High class, Good quality
Shell baking finish, use the same supplier as Dell computer case.
RJ45 connection, simple and easy
Conveniently
RJ45 interface for DMX signal input/output; Use RJ45 cables for connection between DMX console and decoder, connection between decoders. Convenient cable wiring.
16-bit Dimming Curve
Deep Dimming
0-100% PWM dimming, accord with the sense of human eyes, more comfortable and natural lighting experience, suitable for TV shooting.
Dimming--more natural
Coloring--more vivid
Changing effects--more smooth
850 frames per second for frame rate
Higher processing
High-speed data process for the console, up to 850 frames per second.



Product parameter


4CH CV DMX Decoder LT-858-5A

Input signal DMX512
Input power DC12V~DC24V
Max load current 5A ×4CH Max 20A
Max output power 240W/480W(12V/24V)
DMX512 socket RJ45
Dimming range 0~100%
Working temperature -30℃~65℃
Dimension L175×W42×H33(mm)
Package Size L183×W48×H41(mm)
Weight (G.W) 310g

3CH CV DMX Decoder LT-853-6A

Input signal DMX512
Input power DC12V~DC24V
Max load current 6A ×3CH Max 18A
Max output power 216W/432W(12V/24V)
DMX512 socket RJ45
Dimming range 0~100%
Working temperature -30℃~65℃
Dimension L175×W42×H33(mm)
Package Size L183×W48×H41(mm)
Weight (G.W) 310g

1CH CV DMX Decoder LT-855-12A

Input signal DMX512
Input power DC12V~DC24V
Output 12A x1CH+0-10V x1CH
Max output power 144W/288W(12V/24V)
DMX512 socket RJ45
Dimming range 0~100%
Working temperature -30℃~65℃
Dimension L175×W42×H33(mm)
Package Size L183×W48×H41(mm)
Weight (G.W) 310g
